20-position
Note: XINK KE WhatsMiner-Theboxcapacity-is-20-liters
| Compatible | Currency type: BTC/BCH/BSV Machine： Whats MinerM53 Whats MinerM63 |
| Specifications | 200kW Hydro-cooling Miner Rack |
| Please Select | Dry-Wet Tower：5500 Dry Tower：6885 |
$:
Product Features
1. Modularization - the cabinet, pump station control and total power system and cooling system are three modules of the entire system to achieve diversified combinations.
2. Automation - This cabinet is equipped with a PLC automatic control system, which can be unattended 24 hours a day.
3. Flexibility - the control system of the cabinet is equipped with an automatic control mode and a manual control mode. This mode can change the equipment operating parameters in real time according to customer needs.
4. Networking - This system can be operated remotely. Using a mobile APP or through the Internet backend, customers can receive equipment alarms and monitor the operating status of the equipment in real time. If a fault occurs, mobile phone push notifications can be realized.
5. Privacy - the cabinet body can be customized with a variety of appearances, such as the appearance of an electric boiler, which can be disguised and hidden.
6. Autonomous - products are independently developed and produced independently to ensure quality.
Technical Specifications
Cabinet external dimensions: length 850mm, width 1000mm, height 2130mm
Cabinet internal dimensions: length 810mm, width 920mm, height 2127mm.
Overall net weight of the cabinet: 200KG (excluding machine, deviation value ±5KG).

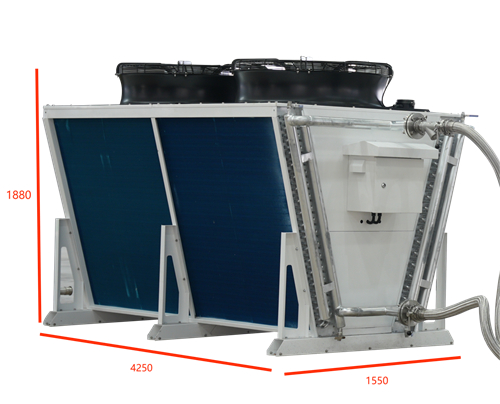

Single Cabinet Configuration—Dry Cooling Tower Specifications
Cooling tower external dimensions: length 4250mm, width 1550mm, height 1880mm
Overall net weight of cooling tower: 665KG (deviation value ±10KG)

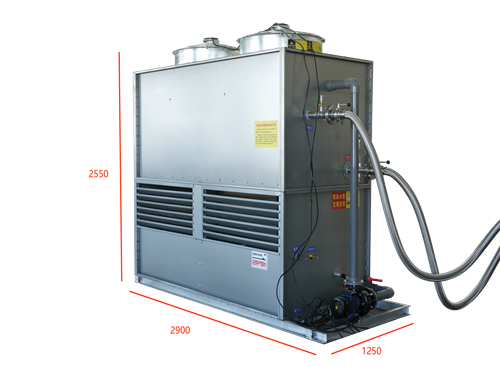

Single cabinet configuration - closed cooling tower specifications:
Cooling tower external dimensions: length 2900mm, width 1250mm, height 2550mm
Overall net weight of cooling tower: 1000KG (deviation value ±10KG)
The 20-position cabinet can be combined with the pump station control-total power system and cooling system to form three modules of the entire system, realizing a modular combination of one pump station driving multiple cabinets, and providing the total power of the entire system through the equipped power cabinet. As follows:
Schematic diagram of one-to-many combined connection
Technical Parameters
| Standard accessory parameters | System operating basic parameters | |||||
| serial number | numerical value | unit | numerical value | unit | ||
| 1 | Installed capacity | 20 | indivual | System pipe pressure | 5~6 | bar |
| 2 | Installed load | 200 | KW | System operating temperature range | 50-60 | ℃ |
| 3 | Lightweight vertical multistage pump power | 2.2 | KW | Single machine coolant circulation requirement | ≥0.5 | m³/h |
| 4 | Rehydration pump power | 0.6 | KW | Total demand for circulating coolant in the system | ≥1.5 | m³ |
| 5 | Dry cooling tower fan total power | 7.5 | KW | Control and Power Systems | ||
| 6 | Total power of closed cooling tower fan | 3 | KW | PDU | 405 | A |
| 7 | Closed cooling tower spray pump power | 1.1 | KW | Automatic reclosing | 400 | A |
| 8 | Option parameters | contactor | 9 | A | ||
| 9 | Electromagnetic heater power | —— | KW | Intermediate relay | twenty four | V |
| 10 | Plate exchange circulation pump power | —— | KW | Frequency converter | 380 | V |
Advantages
All fittings in the pipelines are made of 2.0 grade 304 food grade stainless steel pipe fittings. The thickness of the cabinet plates is 1.5-2.0mm thick. After forming, they are sprayed with black plastic and treated with anti-rust processes. The overall cabinet is high-strength, good-looking, and durable.
The electrical accessories are all domestic and foreign first-line brands selected after many experiments and adhering to the principle of selecting the best from the best, truly achieving the goals of low failure, low loss and high efficiency.
