MW-Level Indoor Liquid Cooling — Modular Deployment · Efficient Heat Exchange · On-Demand Expansion
Product Overview

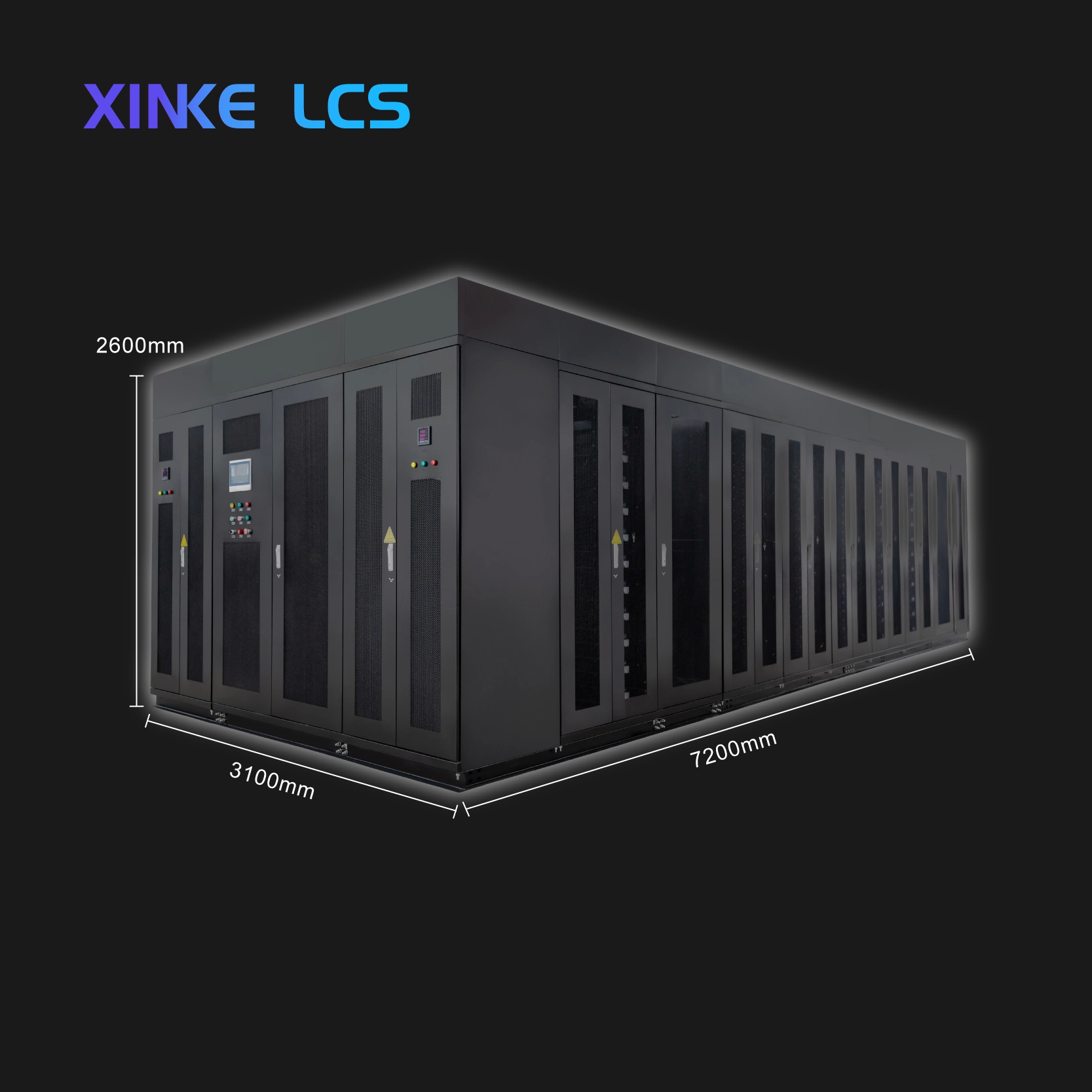

The Whatsminer 2.5MW Indoor Liquid Cooling Module is Xinke Intelligent’s MW-level indoor liquid cooling solution for Whatsminer-series mines, purpose-built for Whatsminer 2U water-cooled servers and carrying 2.5MW-class computing loads in modular form for various indoor sites. With the pump station and control cabinet integrated in the module and a high-efficiency heat exchange design, it delivers stable, precise and efficient liquid cooling for Whatsminer miners — the ideal choice for MW-level indoor liquid cooling construction in small-to-medium mining farms.
Core piping uses 304 stainless steel seamless pipe with a water-electricity isolation design for full safety and stability; optional XINKE SMART provides remote monitoring, leak warning and energy analysis for unattended operation. Multiple modules combine in parallel and expand on demand, working with Whatsminer cabinets and containers to cover every scenario from single modules to scaled deployment.
Key Features
01 2.5MW Power Class, MW-Level Computing Capacity: Modularly carries 2.5MW-class computing loads purpose-built for Whatsminer 2U water-cooled servers, using MW-level heat rejection to support scaled indoor liquid cooling deployment.
02 Custom-Engineered for Whatsminer, Stable & Efficient Heat Exchange: Heat exchange optimized for Whatsminer 2U water-cooled servers keeps temperatures stable under full load, protecting long-term, reliable miner operation.
03 Modular Deployment, Fits Various Indoor Sites: Modular structure fits various indoor sites without large-scale computer room renovation, completing deployment quickly and adapting flexibly to different mining environments.

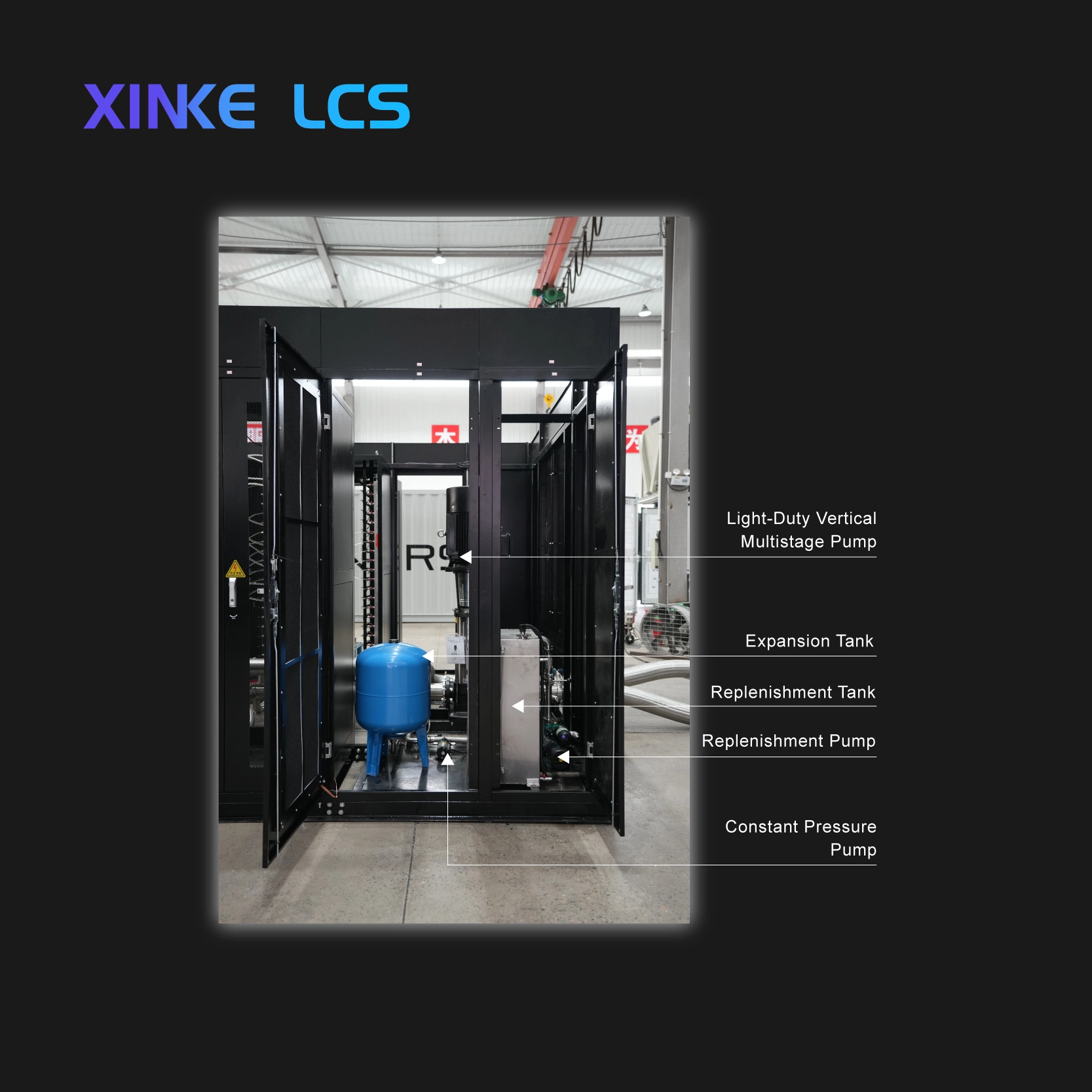

04 Integrated Pump Station & Control Cabinet, All-in-One Design: The pump station and control cabinet are integrated in the module, eliminating separate pump rooms and distribution cabinets for simpler deployment and O&M.
05 Water-Electricity Isolation Design, Safe Operation: Water and electrical circuits are physically isolated to eliminate cross-contamination safety hazards, protecting miners and operators through high-intensity, long-duration operation.
06 304 Stainless Steel Seamless Piping, Clean & Contaminant-Free: Core piping in 304 stainless steel seamless pipe keeps the system clean, corrosion-resistant and contaminant-free, with no scaling or leakage over time.
07 Multi-Module Parallel, On-Demand Expansion: Supports parallel combination of multiple modules, expanding on demand as computing grows; coordinates with Whatsminer cabinets and containers to build a complete liquid cooling system.
08 Precision Manufacturing, Full-Lifecycle Service: ISO9001 quality system with four-stage inspection and ±0.1mm precision; 2-year warranty with 7×24 response and 365-day free on-site service in China.
Technical Specifications
| Parameter | Specification |
| Product Positioning | Indoor liquid cooling module (for Whatsminer 2U water-cooled servers) |
| Power Class | 2.5MW (customized per project) |
| Compatible Models | Whatsminer 2U water-cooled servers |
| Installation Form | Modular indoor deployment, multi-module combination |
| Heat Exchange Design | Integrated pump station/control cabinet, high-efficiency heat exchange |
| Piping Material | 304 stainless steel seamless piping (clean, corrosion-resistant) |
| Safety Design | Water-electricity isolation, physically separated circuits |
| Smart Management | Optional XINKE SMART (unattended) |
| Safety Protection | Optional leak detection and alarm |
| Expansion | Multi-module parallel, on-demand scaling |
| Delivery Cycle | 7-15 days for standard products |
| Warranty | 2 years, 7×24 service response |
Note: Typical configuration parameters; the final specification is subject to the customized project solution.
Working Principle & System Positioning

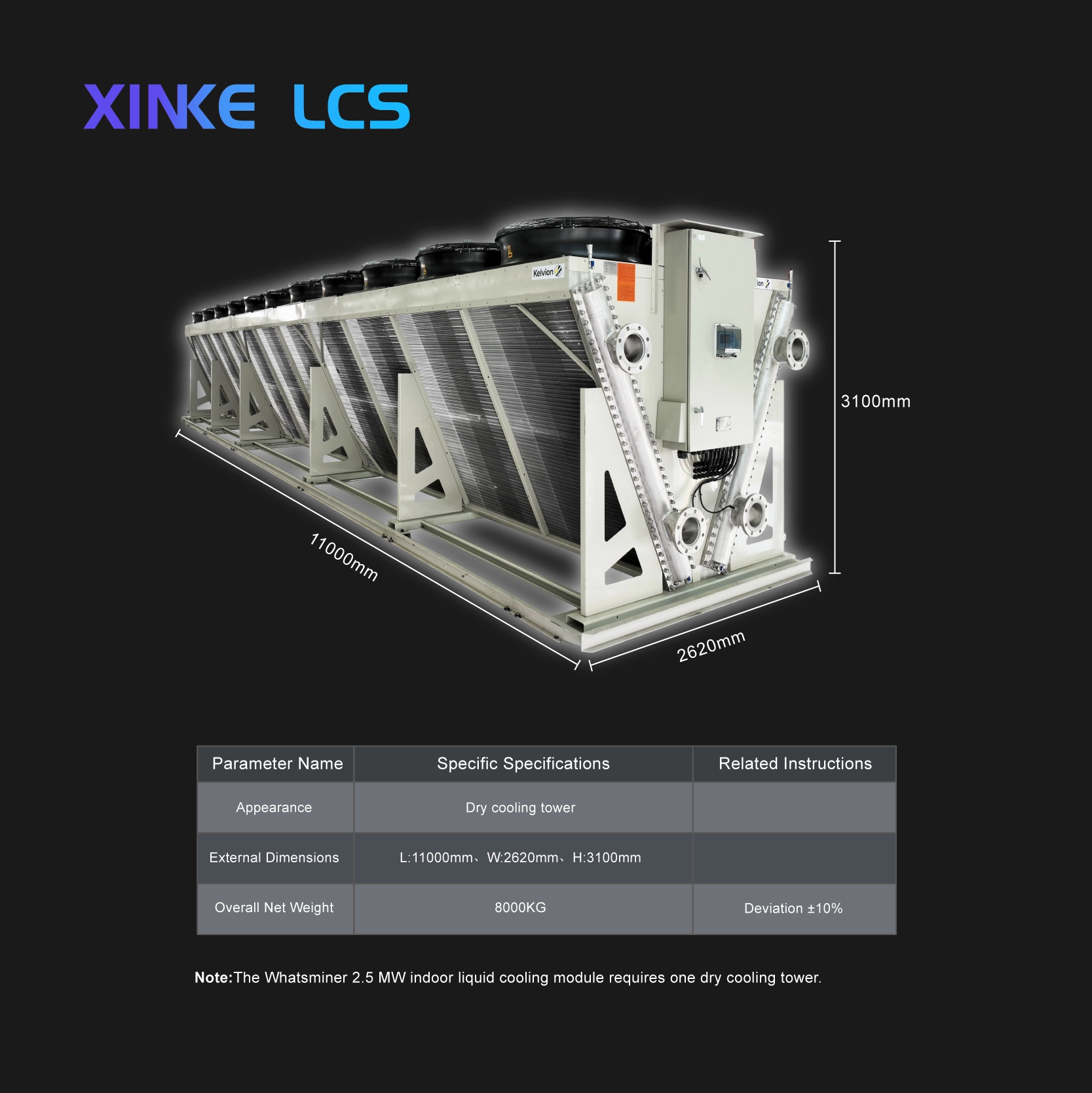

The Whatsminer 2.5MW Indoor Module connects 2U water-cooled servers into a cold plate liquid cooling loop: server heat is transferred to the coolant via cold plates, 304 stainless steel seamless piping delivers the coolant to the integrated pump station, and outdoor heat rejection terminals dissipate it to the environment; water-electricity isolation ensures electrical safety and the smart management system monitors temperature, pressure and flow in real time. Multiple modules combine in parallel to scale further — the modular solution for indoor liquid cooling construction and expansion in Whatsminer mines.
Applications
- Scaled indoor liquid cooling deployment of Whatsminer-series miners
- Liquid cooling retrofit of Whatsminer 2U water-cooled servers
- MW-level liquid cooling construction for small-to-medium mining farms
- Phased construction and modular expansion of mining farms
- Standardized mining facility construction
Services & Warranty
- 2-year warranty with 7×24 service response
- 365-day free on-site service in China, covering the full project lifecycle
- Fully customizable: form factor, features, appearance and piping layout
- Standard products delivered in 7-15 days; large custom projects in 30-45 days
- Products delivered to 30+ countries and regions worldwide
