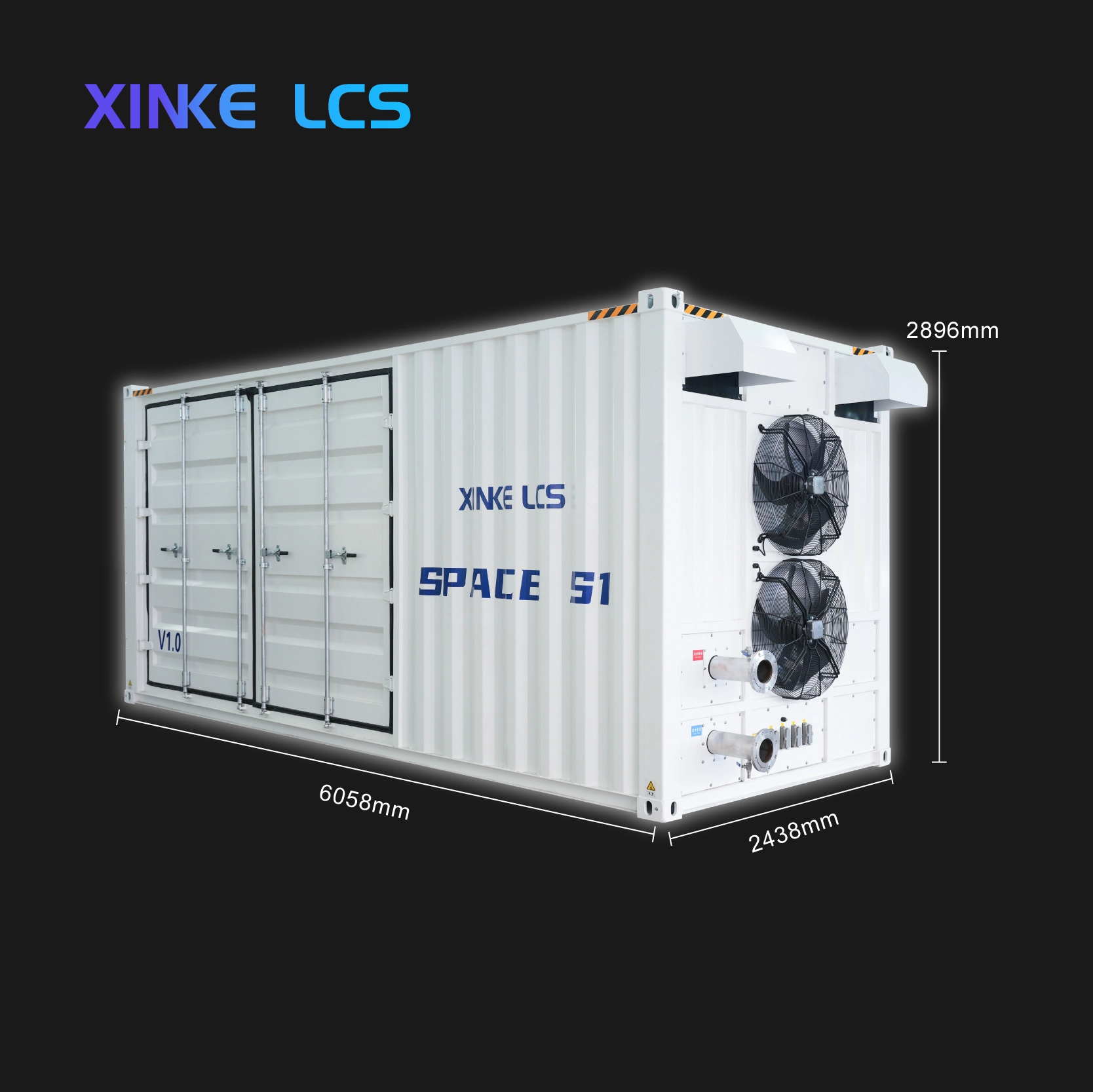

Whatsminer Water-Cooled Servers 120-POSITION 20HQ CONTAINERCOOLING SOLUTION

This equipment is custom-designed for the Whatsminer 2U water-cooled server, housed in a 20HQ, 120-position liquid-cooled container. It features a highly integrated modular design, combining the CDU, power, and control systems into one unit. it enables rapid deployment and global certification. It supports independent operation on the left and right sides, resulting in more energy-efficient operation, more flexible control, and immediate usability upon deployment.

The standard configuration includes the XINKE SMART intelligent management system, enabling 24-hour unattended operation.

1. The system can detect the power supply voltage and automatically shut down in case of overvoltage or undervoltage.

2. Supports power and energy statistics, allowing users to view cumulative power consumption and real-time power usage.

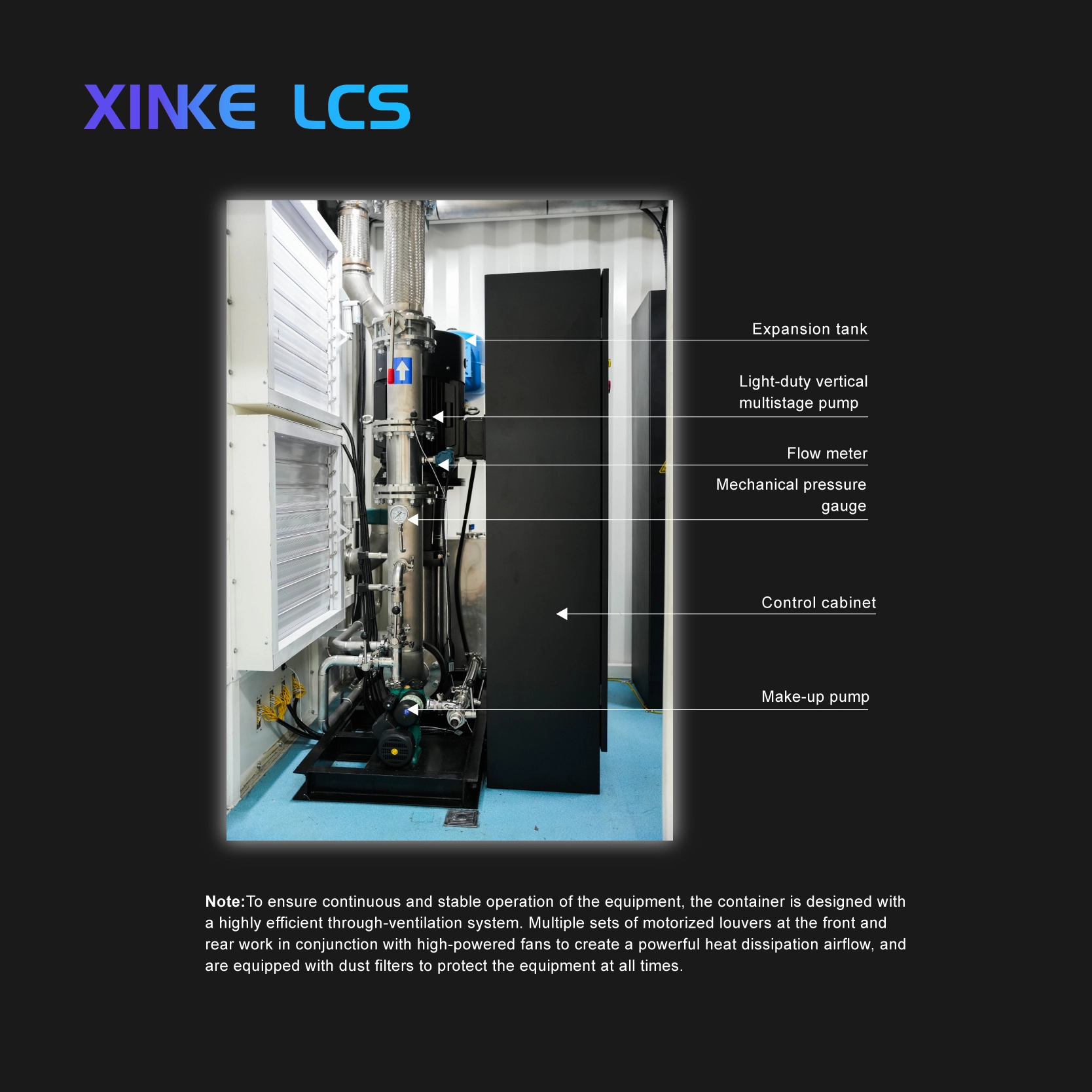

3. Visualized operating status, displaying real-time parameters such as pressure, temperature, and flow rate, with data storage and historical curve query functions for easy traceability and analysis.

4. Equipped with constant pressure control function, automatically replenishing and depressurizing according to preset parameters to ensure stable system operation.

5. The circulating pump supports dual modes: manual frequency setting or automatic frequency adjustment according to preset flow rate.

6. Equipped with leak detection; immediately alarming and shutting down upon leak detection to prevent equipment damage and safety hazards.

7. The server rack power supply uses a residual current circuit breaker, which automatically opens and closes according to the system operating status, providing reliable power supply protection.
