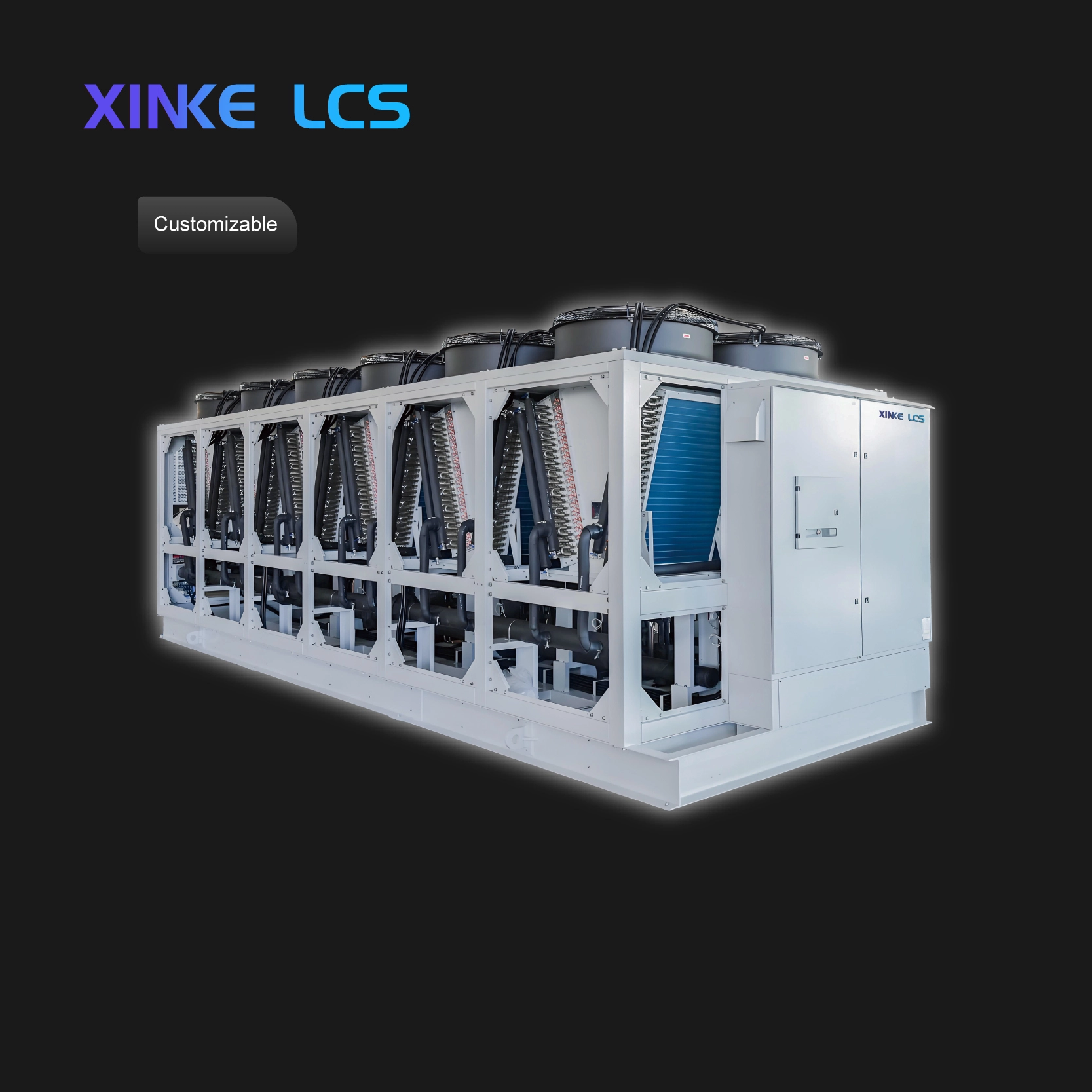

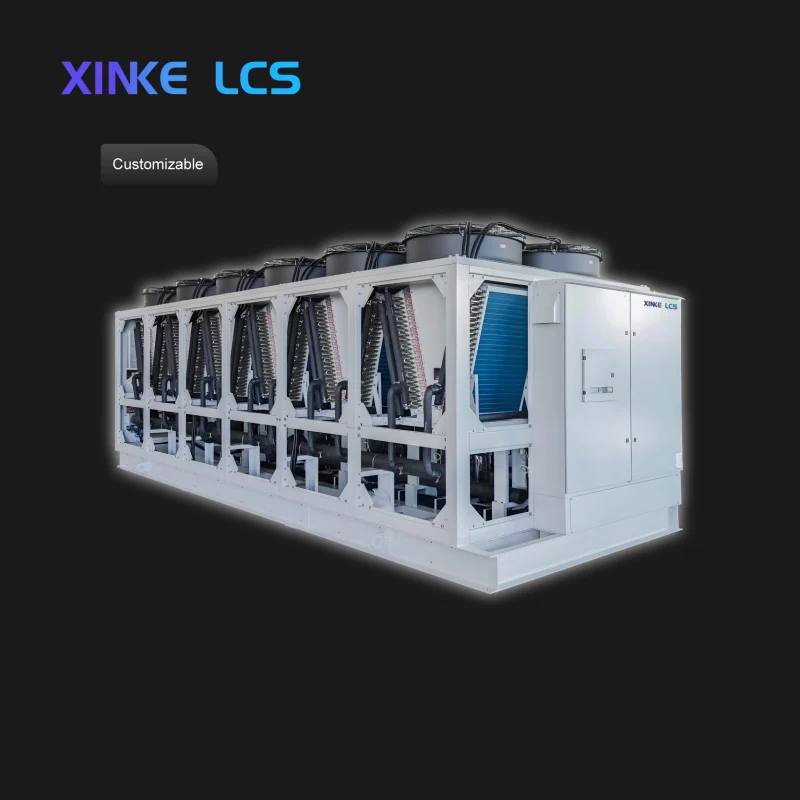

Integrated Cooling Station for Data Center (Customizable)
Purchase Your Miner
- 1 Miner with power cables
- Shipping & Logistics anywhere in the Worldwide
- After Sales Support, Hosting, and Consultation offerings
Product description
All-in-one integrated cooling station for liquid-cooled data centers. CDU, pumping, control systems combined. Space-saving, efficient thermal management.
External dimensions
Sizes vary per model
Internal dimensions
Sizes vary per model
Weight
Weights vary per model

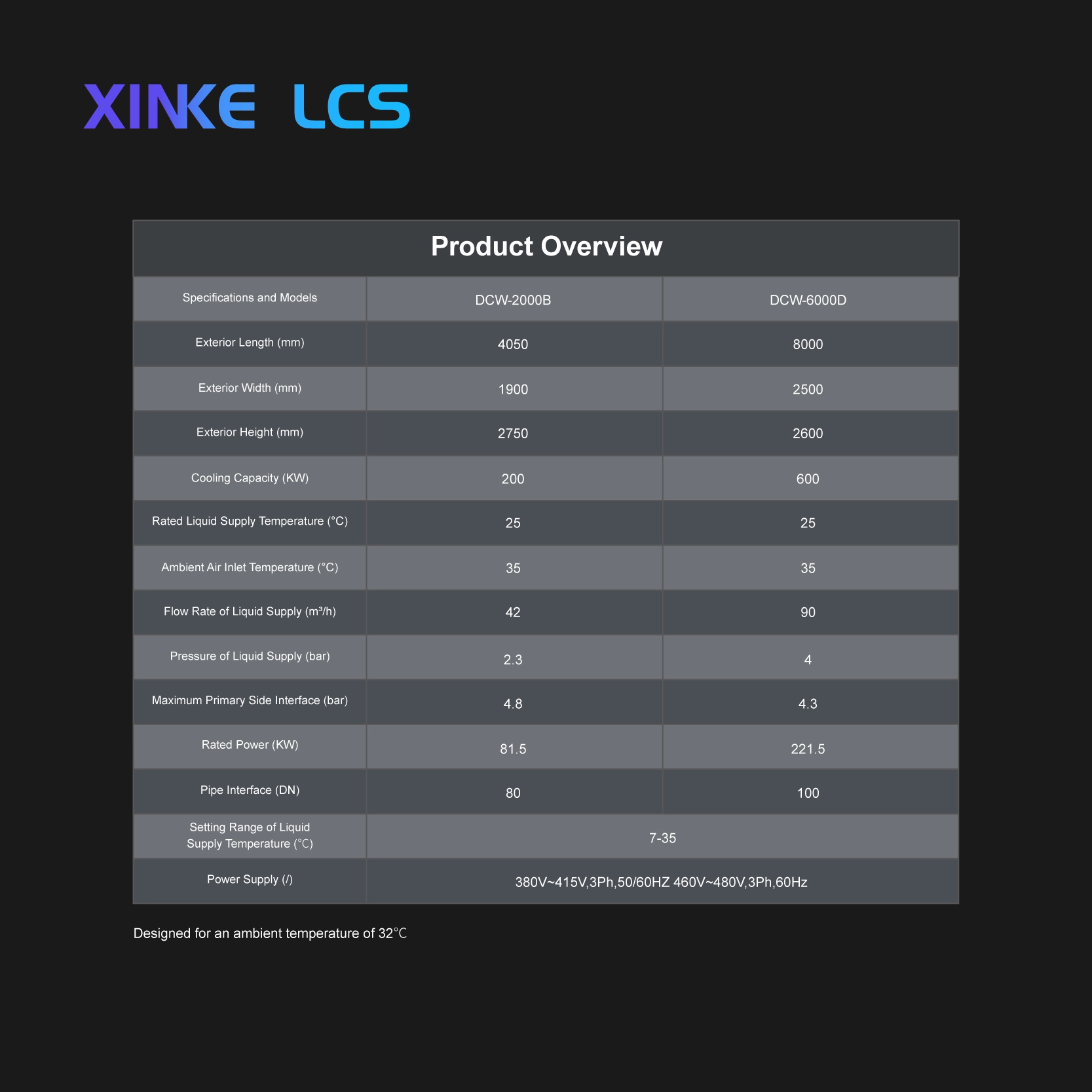

Specifications and Models
DCW-2000B、DCW-6000D
Exterior Length
4050、8000
mm
Exterior Width
1900、2500
mm
Exterior Height
2750、2600
mm
Cooling Capacity
200、600
KW
Rated Liquid Supply Temperature
25
°C
Ambient Air Inlet Temperature
35
°C
Flow Rate of Liquid Supply
42、90
m³/h
Pressure of Liquid Supply
2.3、4
bar
Maximum Primary Side Interface
4.8、4.3
bar
Rated Power
81.5、221.5
KW
Pipe Interface
80、100
DN
Setting Range of Liquid Supply Temperature
7-35
℃
Power Supply
380V~415V,3Ph,50/60HZ 460V~480V,3Ph,60Hz
Price：
$60,000.00
