Plug-and-Play Miniature Liquid-Cooled Data Center — 7-System Integration · Hot/Cold Aisle Isolation · Unattended

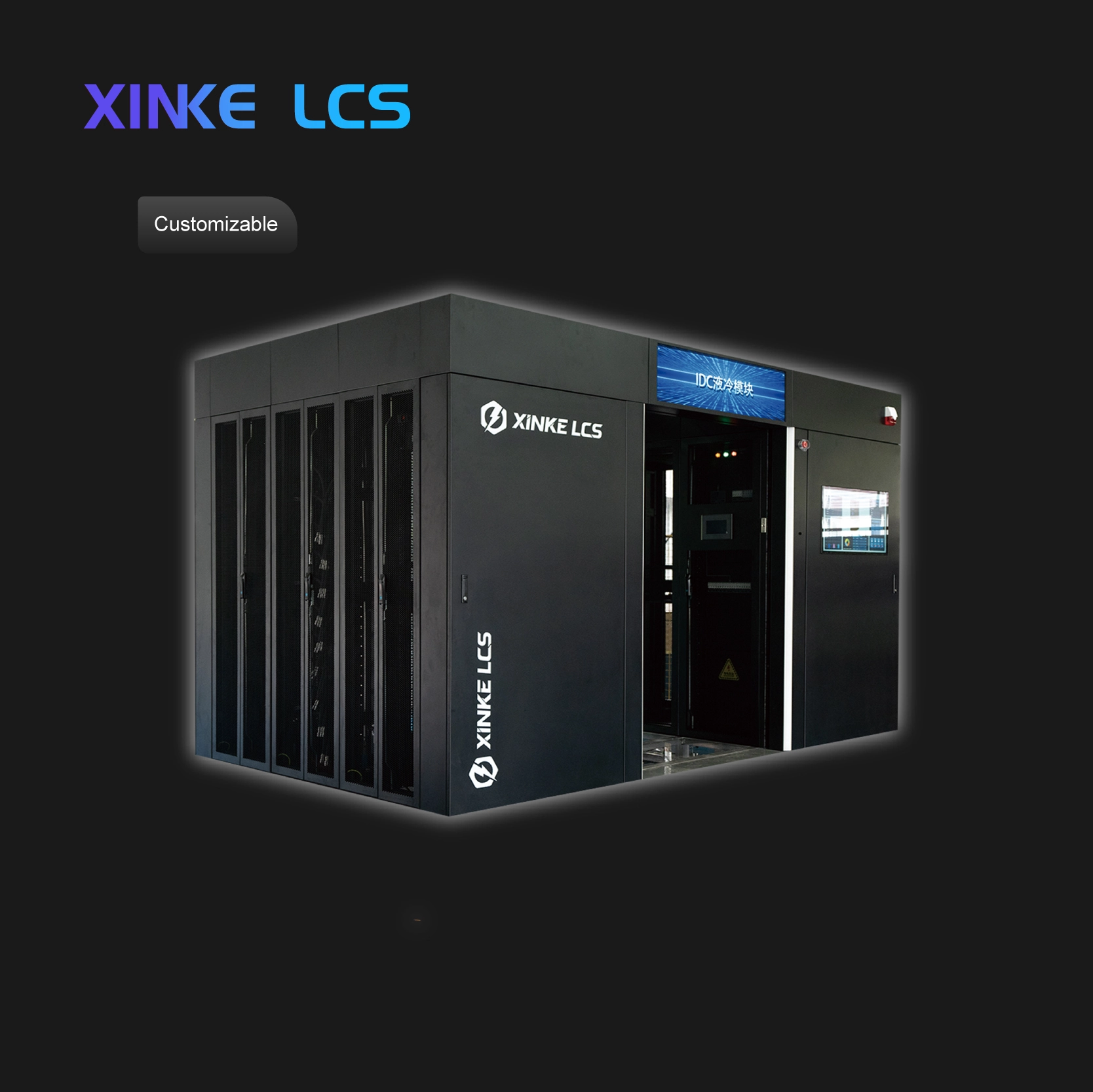

Product Overview
The Data Center Liquid Cooling Micro Module is Xinke Intelligent’s next-generation integrated liquid cooling solution for small computer rooms and edge computing, integrating seven systems — racks, power distribution, cooling, management, lightning protection, cabling and fire protection — into a single standardized module. Fully integration-tested at our own factory, it ships as a miniature liquid-cooled data center and runs as soon as water and power are connected: “install and use, compute on the go.”
The module uses a sealed hot/cold aisle design that physically isolates supply and return airflow to eliminate hot spots at the source; smart temperature control dynamically matches cooling output to server load. Multiple micro modules support networking, interconnection and group control, scaling smoothly into multi-module clusters — a lightweight, replicable and easy-to-operate way to build computing infrastructure.

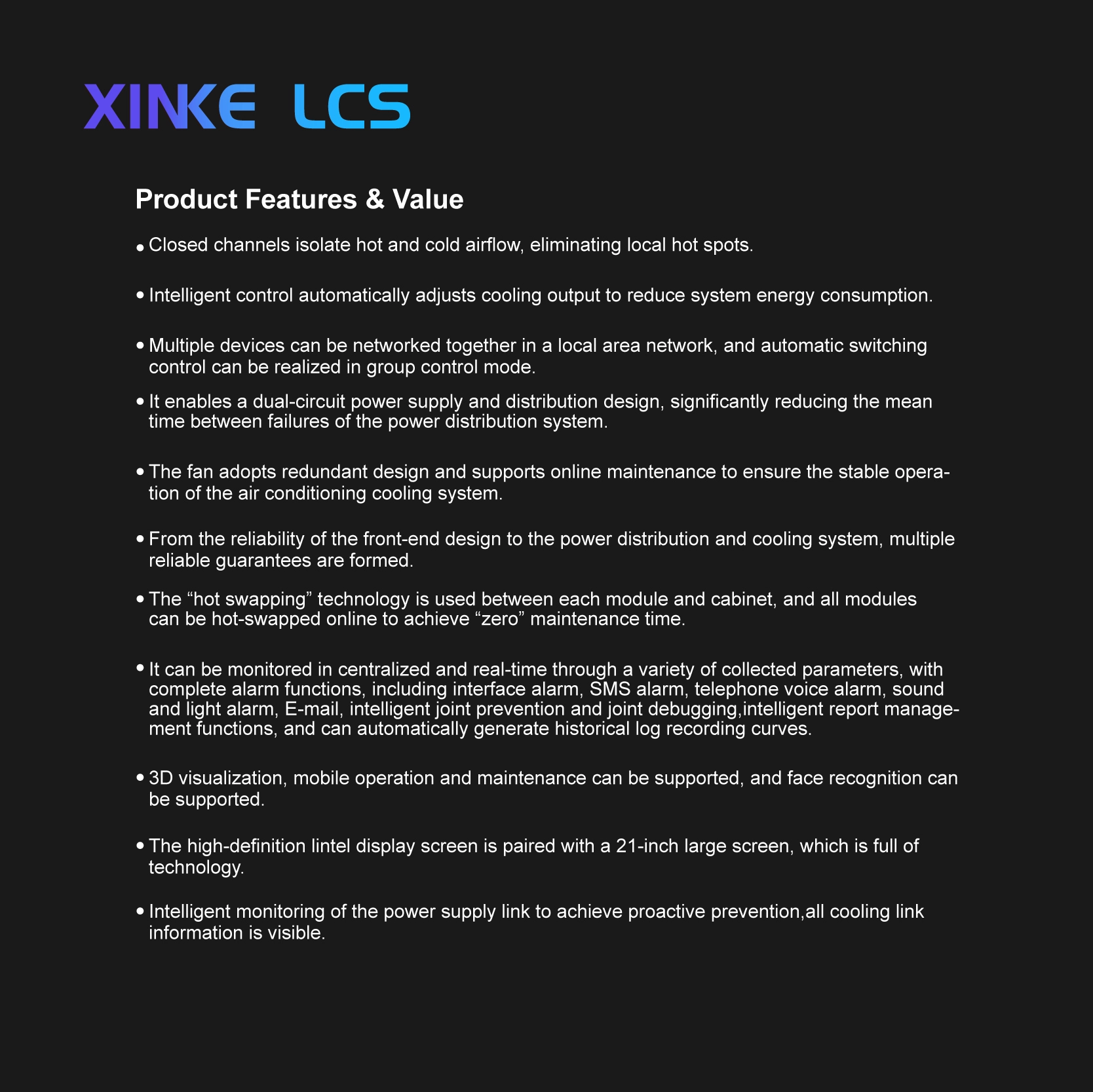

Key Features
01 Seven-System Integration, a Data Center Out of the Box: Racks, power distribution, cooling, management, lightning protection, cabling and fire protection integrated into a single standardized module and fully integration-tested at the factory; connect utilities on site and it runs — no civil works or complex installation.
02 Sealed Hot/Cold Aisle Isolation, No Hot Spots: Closed hot/cold aisle design physically separates supply and return airflow for efficient, orderly air distribution, eliminating hot spots at the source and keeping server temperatures uniform and stable.
03 Smart Temperature Control, Cooling Matched to Load: The intelligent cooling system dynamically adjusts cooling output to server load, with the cooling curve always tracking the load curve to avoid overcooling and wasted energy.
04 Dual-Circuit Redundancy, Hot-Swap Maintenance: Dual-redundant power distribution with hot-swappable key components allows online replacement without shutdown, maximizing compute continuity and O&M efficiency.
05 Whole-Module Monitoring, Four-Channel Alarm: The monitoring platform covers temperature, humidity, power consumption and the full power distribution chain, with alarms triggered in parallel via SMS, email, voice call and audible/visual alarm, plus historical trend curves.

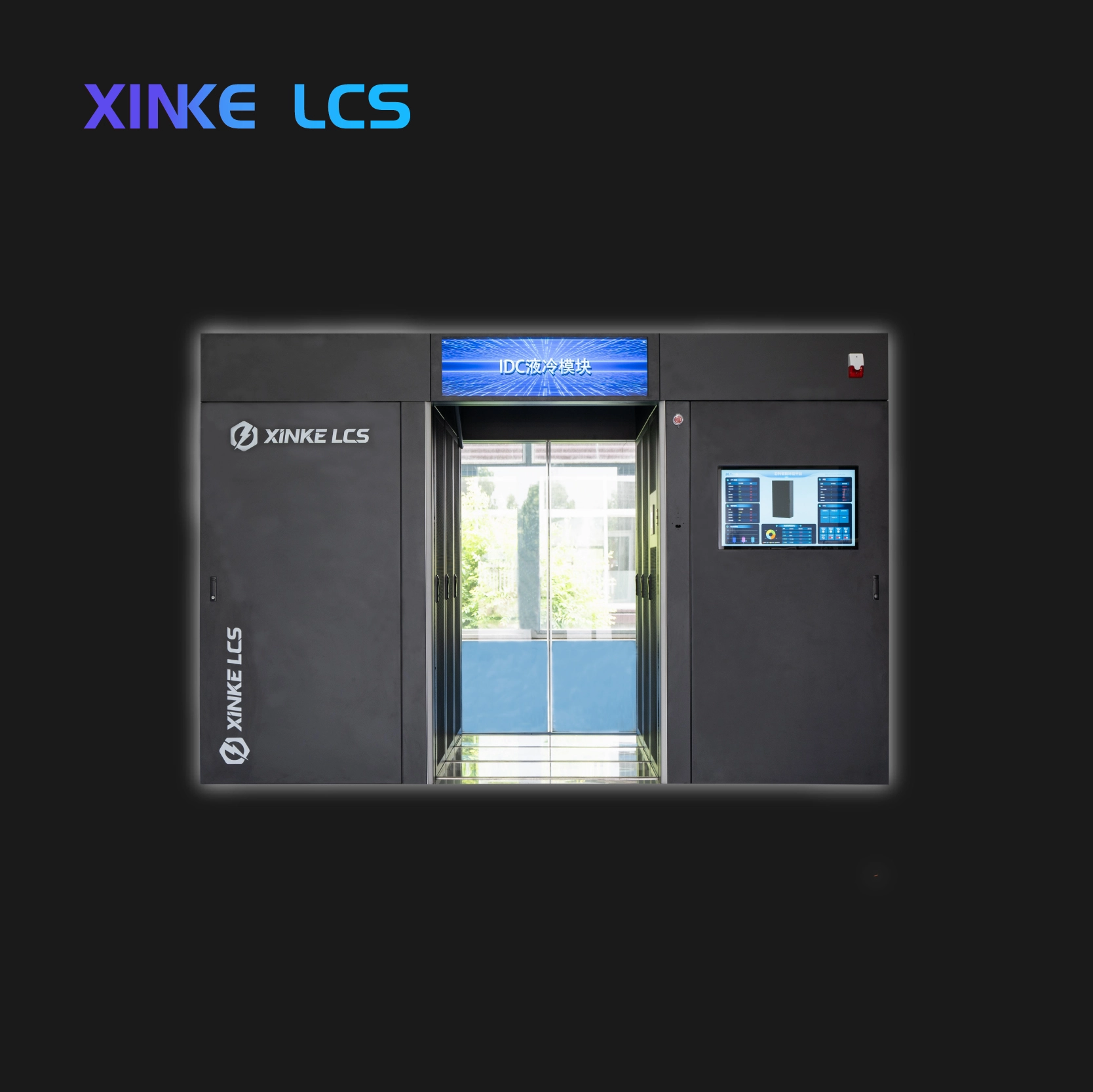

06 3D Visualization, Remote Unattended Operation: Supports 3D visualization and mobile remote O&M, with facial-recognition access control, an HD LED door header screen and a 21-inch industrial touch display; optional XINKE SMART for integrated liquid cooling, power and HVAC control.
07 Networking & Group Control, On-Demand Expansion: Multiple micro modules support interconnection and group control, expanding on demand into multi-module clusters, from small computer rooms to edge nodes and modular computing parks.
08 Full-Process Manufacturing, Full-Lifecycle Service: Backed by a 30,000 m² liquid cooling manufacturing base with 500MW+ annual capacity and fully in-house production; 2-year warranty with 7×24 response and 365-day free on-site service in China.
Technical Specifications
| Parameter | Specification |
| Product Positioning | Integrated liquid cooling solution for small computer rooms / edge computing |
| Integrated Systems | Racks, power distribution, cooling, management, lightning protection, cabling, fire protection |
| Cooling Form | Cold plate liquid cooling + sealed hot/cold aisle air-liquid coordination |
| Temperature Control | Smart control with cooling output dynamically matched to server load |
| Power Distribution | Dual-circuit redundancy; hot-swappable key components |
| Monitoring & Management | Whole-module monitoring, four-channel alarm, historical curves, 3D visualization |
| Human-Machine Interface | Facial-recognition access control, HD LED door header, 21-inch industrial touch display |
| Smart Management | Optional XINKE SMART (remote O&M / unattended) |
| Expansion | Multi-module networking and group control, on-demand cluster expansion |
| Deployment | Factory pre-commissioned; connect utilities and run |
| Manufacturing | 30,000 m² base, 500MW+ annual capacity, fully in-house production |
| Warranty | 2 years, 7×24 service response |
Note: Typical configuration parameters; the final specification is subject to the customized project solution.
Working Principle & System Positioning
The Liquid Cooling Micro Module condenses all subsystems of a small data center into one standardized module: server heat is transferred to the coolant via cold plates, passed through the CDU heat exchange to the secondary loop and rejected by outdoor dry coolers / closed cooling towers; the sealed hot/cold aisle ensures efficient in-module airflow; the monitoring platform senses temperature, humidity, power consumption and power distribution status in real time, linking smart temperature control and four-channel alarms. Connected to utilities, it becomes an independently running miniature liquid-cooled data center, and multi-module networking forms computing clusters for retrofit, edge and rapid-delivery scenarios.
Applications
- Rapid deployment for small computer rooms and edge computing nodes
- Liquid cooling retrofit and upgrade of traditional computer rooms
- Blockchain mining farms and small-to-medium computing scenarios
- 5G edge and park-level computing nodes
- Temporary and relocatable computing needs
Services & Warranty
- 2-year warranty with 7×24 service response
- 365-day free on-site service in China, covering the full project lifecycle
- Fully customizable: form factor, features, appearance and piping layout
- Standard products delivered in 7-15 days; large custom projects in 30-45 days
- Products delivered to 30+ countries and regions worldwide
