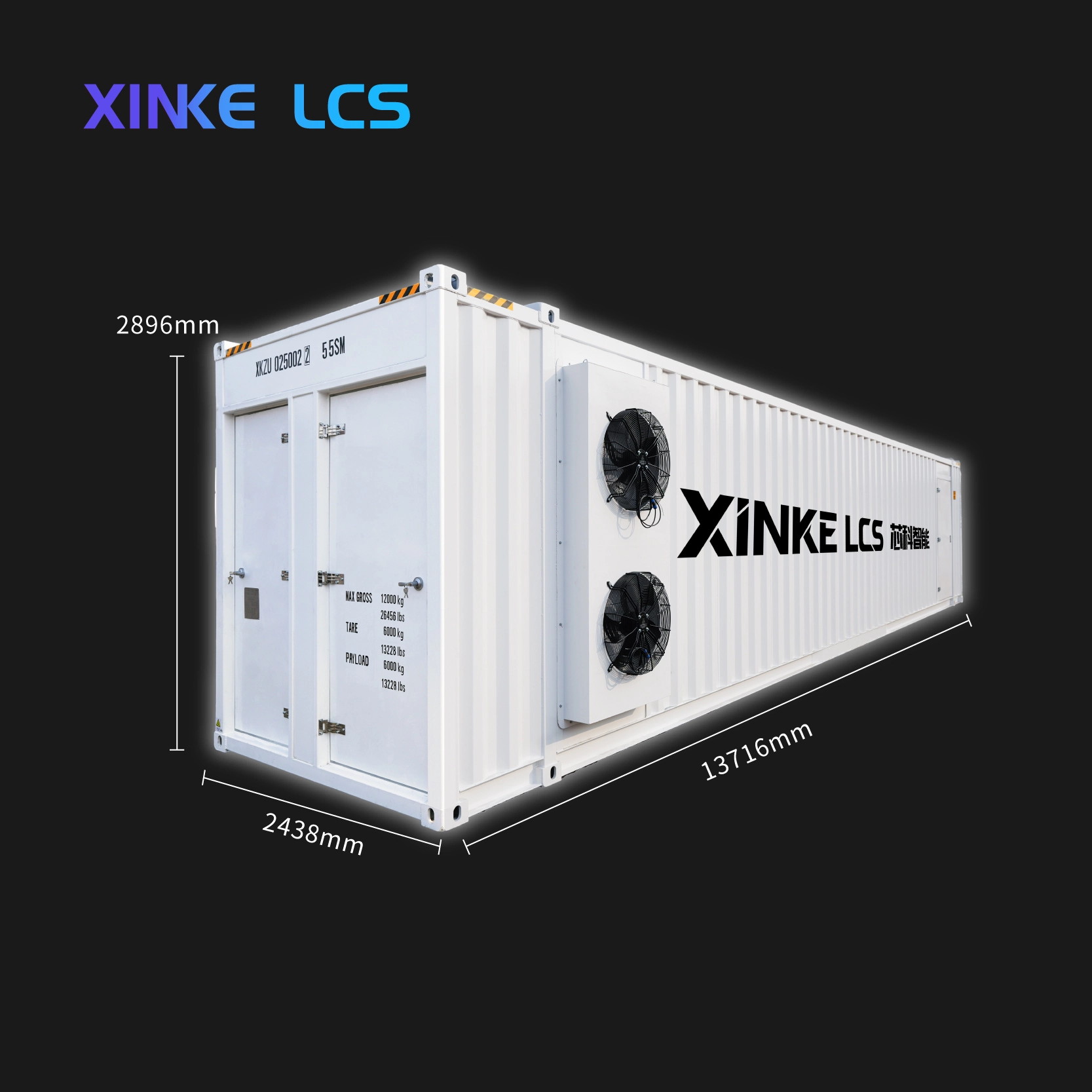

AvalonMiner Water Cooled Servers 240 POSITION 45HQ CONTAINERINTEGRATED COOLING SOLUTION

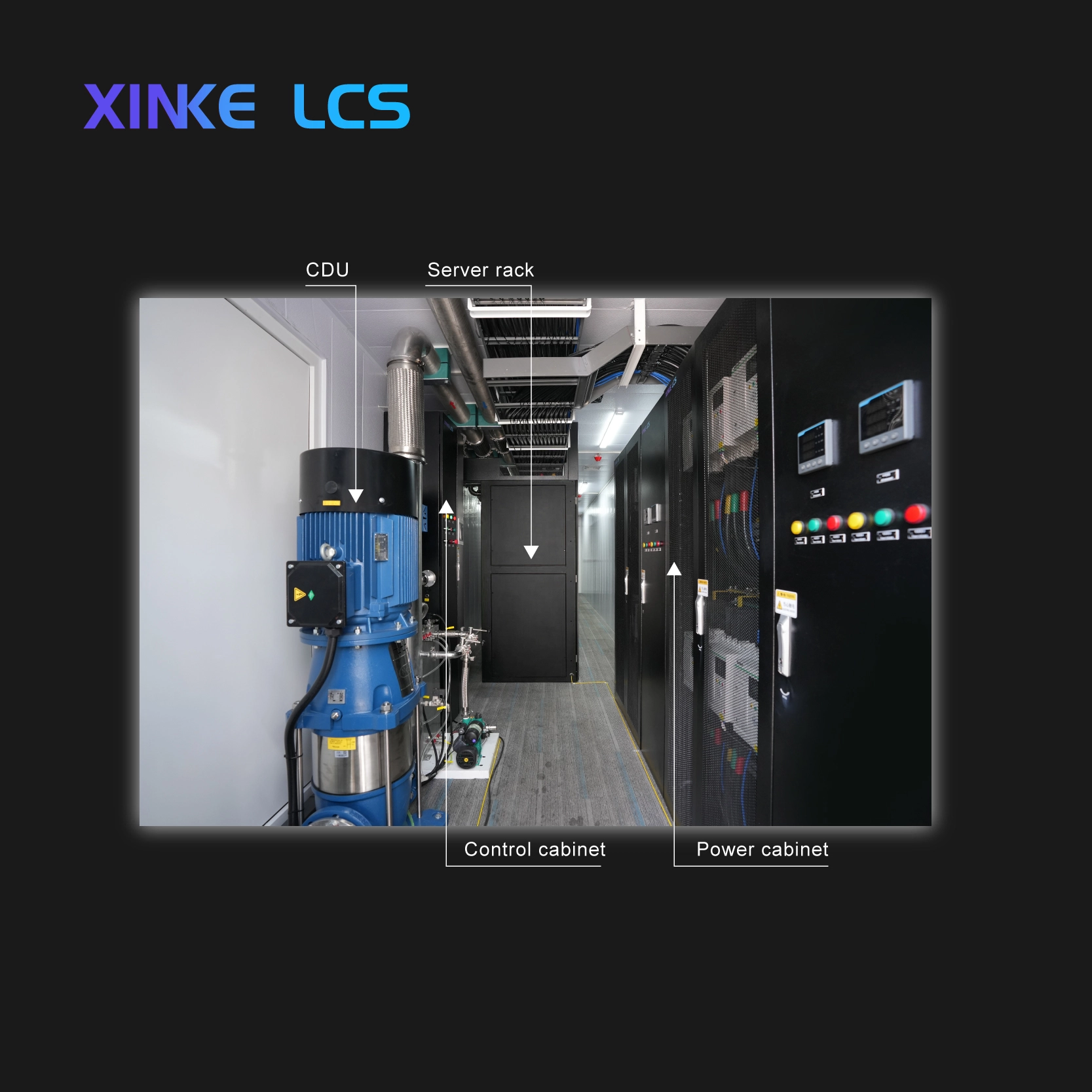

This product is customized for Avalonminer 2U water-cooled servers, which is a 45-foot 240-position liquid cooling container. It adopts highly integrated modular design, integrating CDU, power, control and other systems into one,realizing rapid deployment and global certification. It adopts a single-row design to make operation more energy-efficient and control more flexible, and it can be used immediately upon arrival, making it the industry’s top-of-the-line product.

The standard configuration includes the XINKE SMART intelligent management system, enabling 24-hour unattended operation.

1. The system can detect the power supply voltage and automatically shut down in case of overvoltage or undervoltage.

2. Supports power and energy statistics, allowing users to view cumulative power consumption and real-time power usage.

3. Visualized operating status, displaying real-time parameters such as pressure, temperature, and flow rate, with data storage and historical curve query functions for easy traceability and analysis.

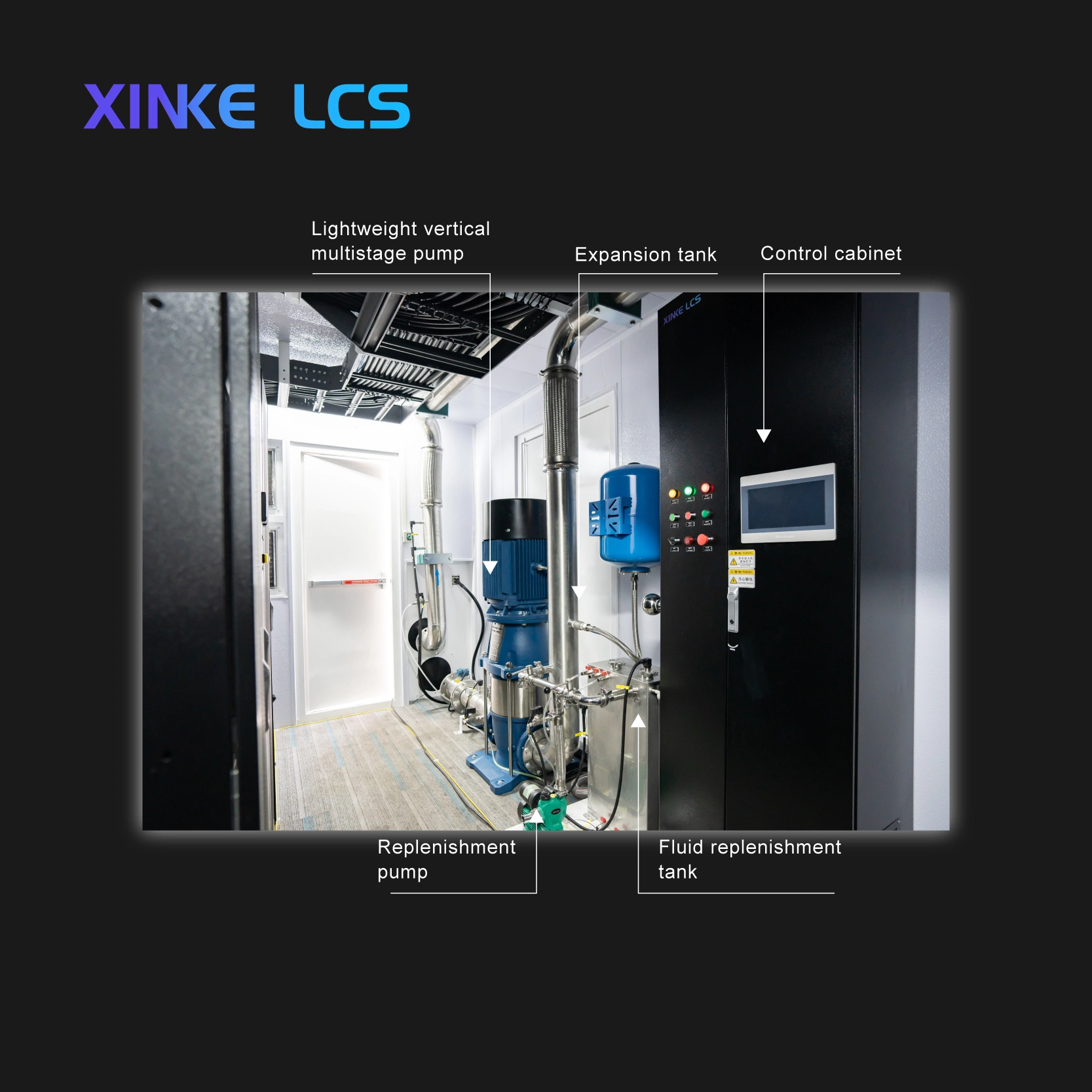

4. Equipped with constant pressure control function, automatically replenishing and depressurizing according to preset parameters to ensure stable system operation.

5. The circulating pump supports dual modes: manual frequency setting or automatic frequency adjustment according to preset flow rate.

6. Equipped with leak detection; immediately alarming and shutting down upon leak detection to prevent equipment damage and safety hazards.

7. The server rack power supply uses a residual current circuit breaker, which automatically opens and closes according to the system operating status, providing reliable power supply protection.
