Mainstream Avalon Cabinet — Modular CDU · One-to-Many · 2U Water-Cooled Compatibility
Product Overview

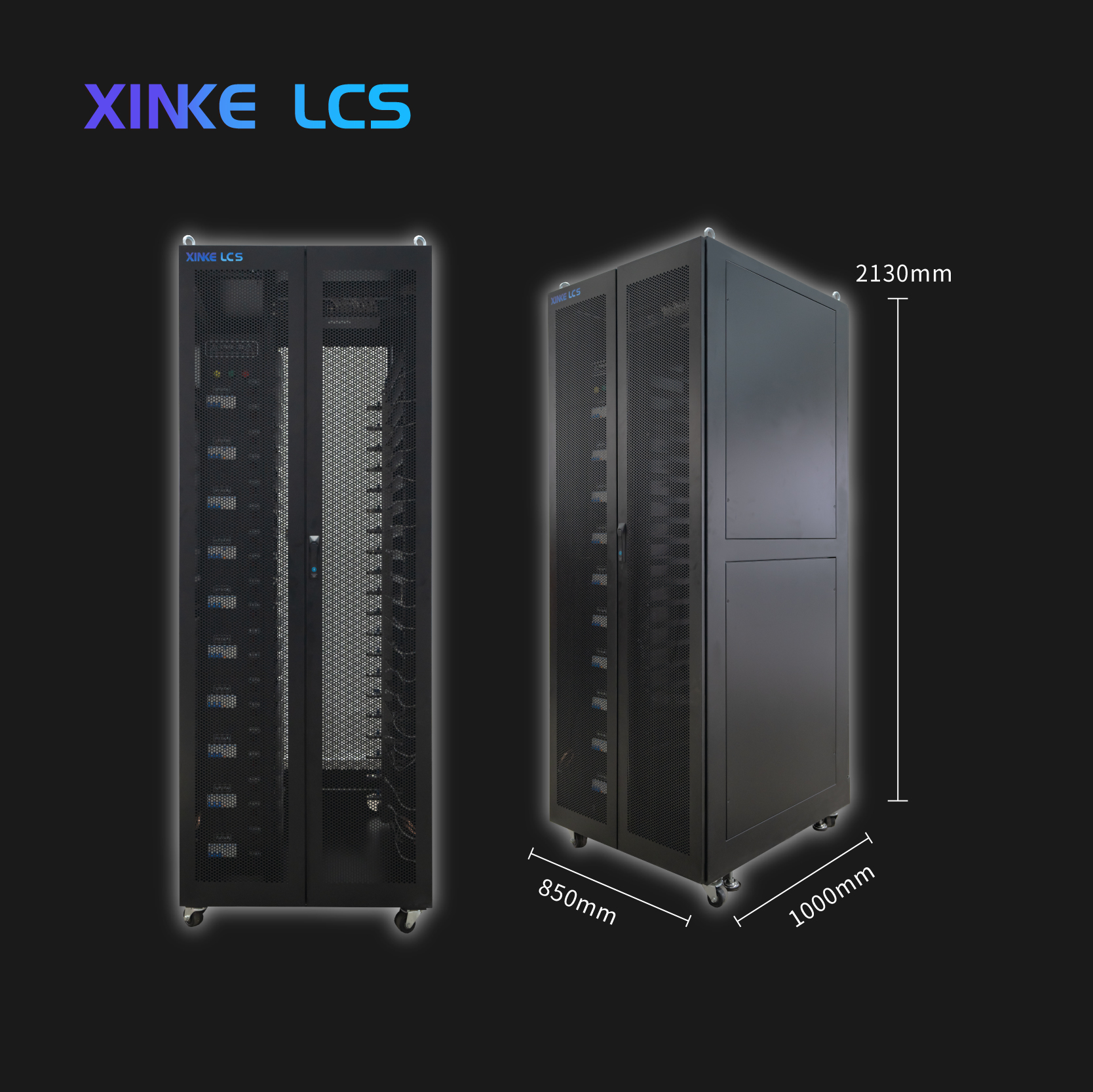

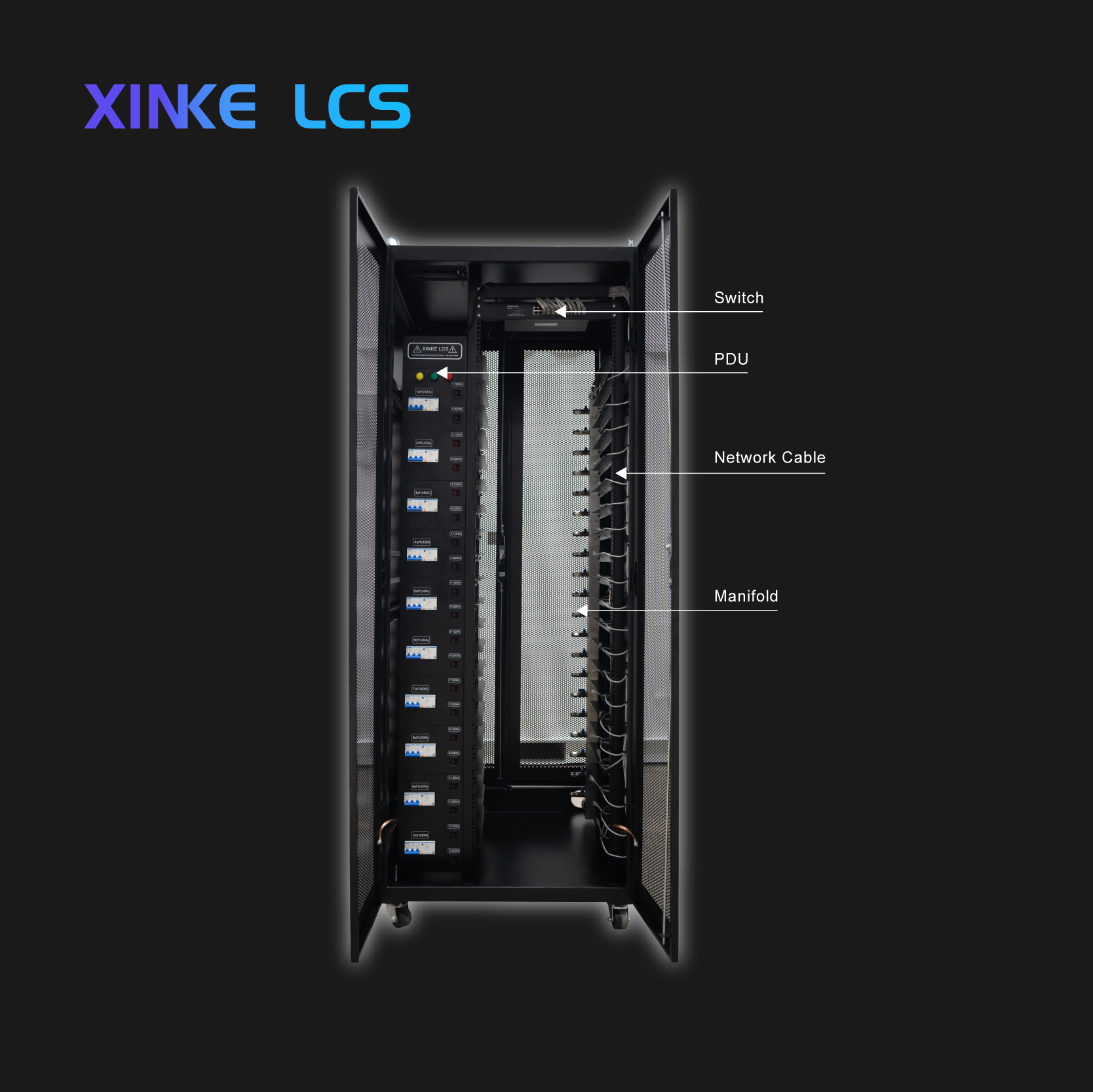

The Avalon 20-Bay Liquid Cooling Cabinet is Xinke Intelligent’s indoor liquid cooling cabinet for Avalon-series miners, purpose-built for Avalon 2U water-cooled servers with 20-bay high-density capacity compatible with mainstream Avalon models. Built on a modular CDU architecture, one CDU can drive multiple cabinets (one-to-many) for diverse combinations, delivering scaled liquid cooling deployment at significantly lower cooling-source cost.
As the mainstream model of the Avalon cabinet series, the 20-bay version strikes an ideal balance between per-cabinet capacity and deployment flexibility, making it the standard choice for Avalon mine liquid cooling upgrades. The cabinet integrates the pump station and control cabinet with the bays in a minimal footprint; core piping uses 304 stainless steel seamless pipe with a water-electricity isolation design; optional XINKE SMART supports unattended operation.
Key Features
01 Custom-Engineered for Avalon, 2U Water-Cooled Server Compatibility: Designed for Avalon 2U water-cooled servers with 20 bays, compatible with mainstream Avalon models and flexibly adapted for efficient indoor liquid cooling deployment.
02 Modular CDU, One-to-Many Combination: The modular CDU architecture allows one CDU to drive multiple cabinets (one-to-many) with diverse combinations, achieving larger deployment with fewer cooling units and significantly cutting cooling-source cost.

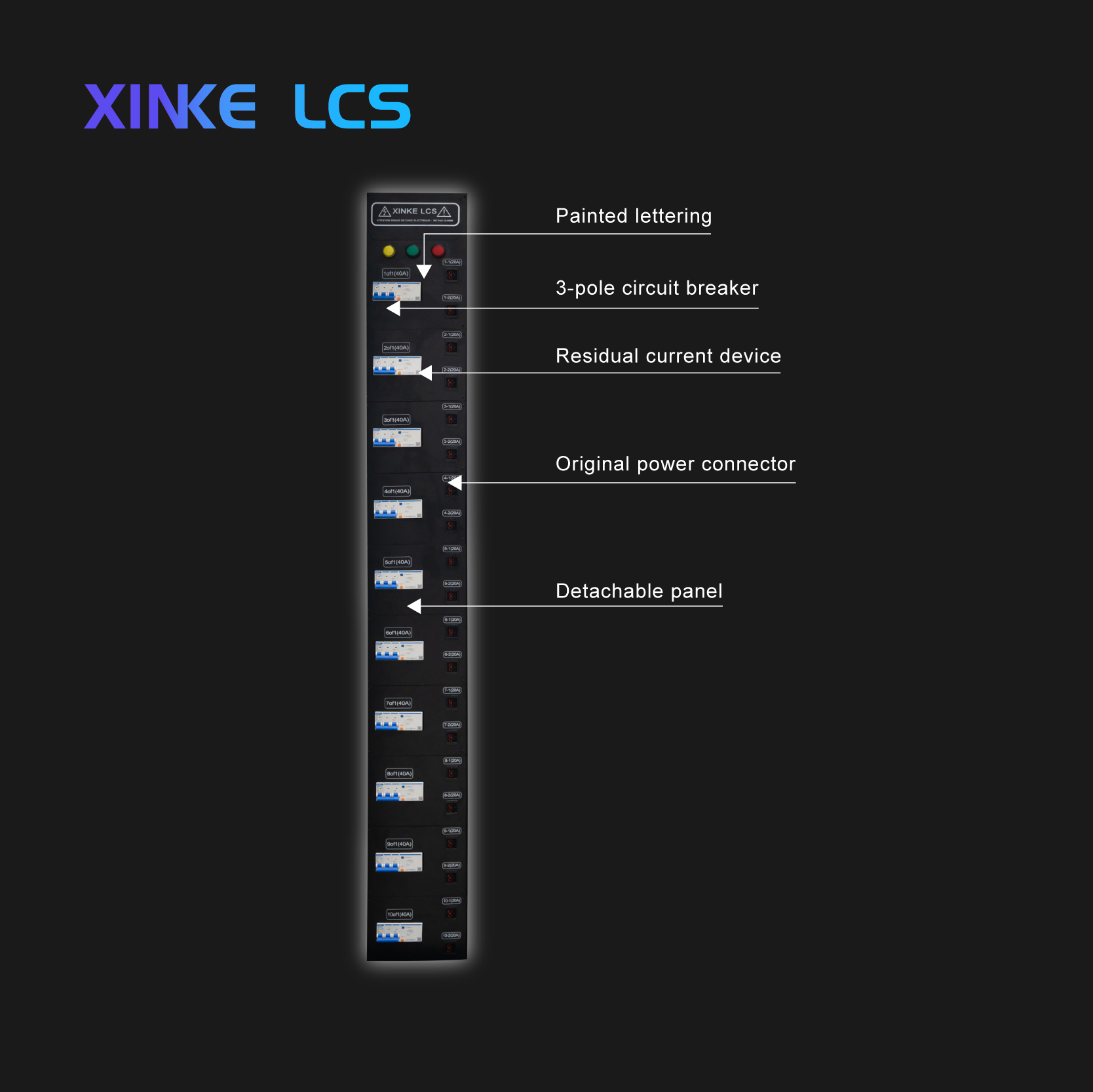

03 Water-Electricity Isolation Design, Safe Operation: Water and electrical circuits are physically isolated to eliminate cross-contamination safety hazards, protecting equipment and operators through high-intensity, long-duration operation.
04 304 Stainless Steel Seamless Piping, Clean & Contaminant-Free: Core piping in 304 stainless steel seamless pipe keeps the system clean, corrosion-resistant and contaminant-free, safeguarding coolant quality with no scaling or leakage over time.

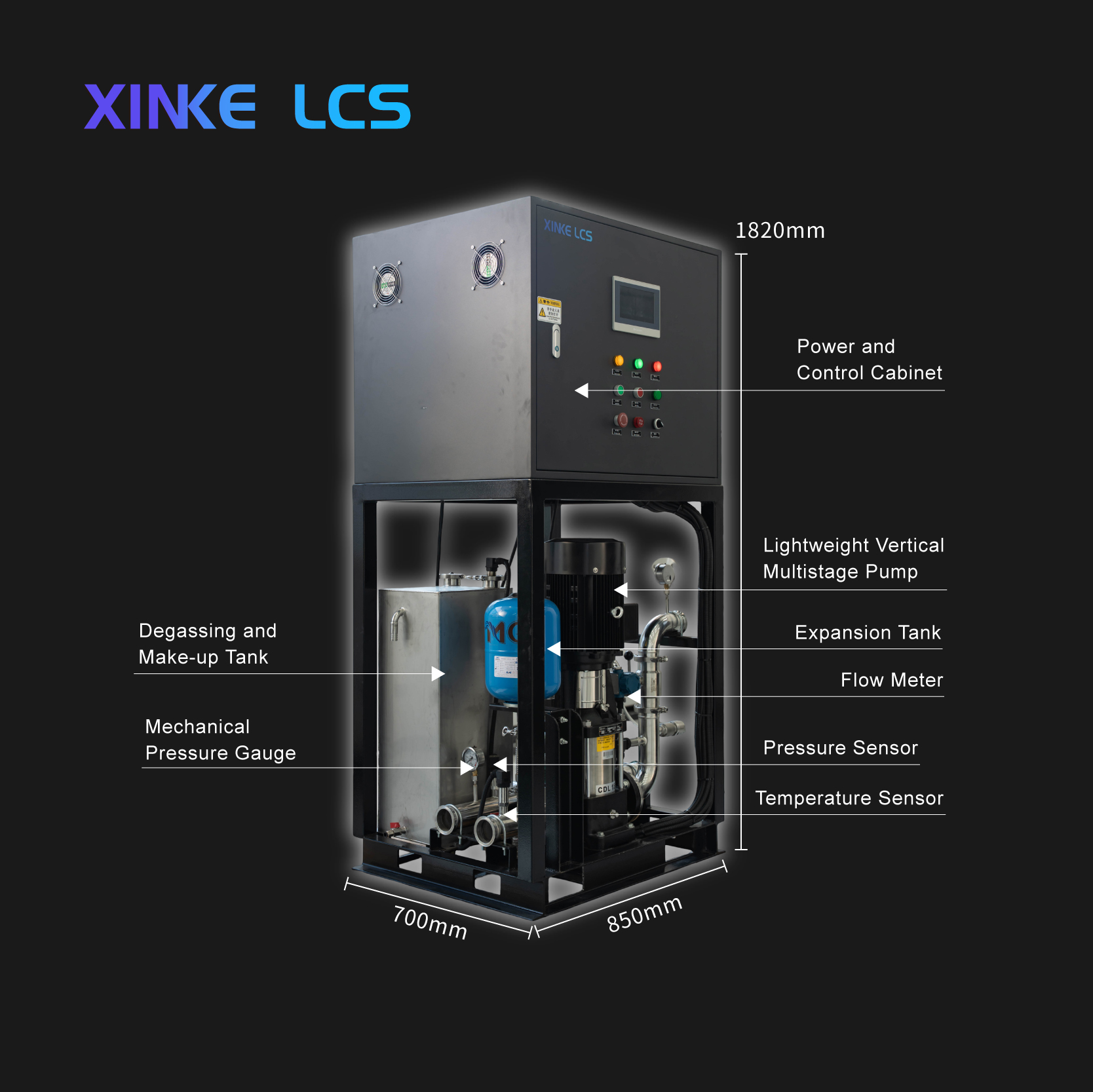

05 Integrated Pump Station & Control Cabinet, Minimal Footprint: The pump station and control cabinet are highly integrated with the bays, eliminating separate pump rooms and distribution cabinets, with a minimal footprint for rapid deployment in various indoor sites.
06 Smart Management, Unattended Operation: Optional XINKE SMART provides remote on/off, leak warning, energy analysis and remote O&M for fully unattended operation.
07 Modular Expansion, Flexible Combination: Cabinets and CDUs are modular for diverse combinations and on-demand scaling, evolving smoothly from small mines to scaled deployment with progressive investment.
08 Precision Manufacturing, Full-Lifecycle Service: ISO9001 quality system with four-stage inspection and ±0.1mm precision; 2-year warranty with 7×24 response and 365-day free on-site service in China.
Technical Specifications
| Parameter | Specification |
| Product Positioning | Indoor liquid cooling cabinet (for Avalon 2U water-cooled servers · mainstream model) |
| Bay Capacity | 20 bays (compatible with mainstream Avalon models) |
| Compatible Models | Avalon 2U water-cooled servers |
| Cooling Architecture | Modular CDU, one-to-many, diverse combinations |
| Piping Material | 304 stainless steel seamless piping (clean, corrosion-resistant) |
| Safety Design | Water-electricity isolation, physically separated circuits |
| Deployment Form | Integrated pump station/control cabinet, minimal footprint, indoor |
| Smart Management | Optional XINKE SMART (unattended) |
| Safety Protection | Optional leak detection and alarm |
| Expansion | Modular combination of cabinets and CDUs, on-demand scaling |
| Delivery Cycle | 7-15 days for standard products |
| Warranty | 2 years, 7×24 service response |
Note: Typical configuration parameters; the final specification is subject to the customized project solution.
Working Principle & System Positioning

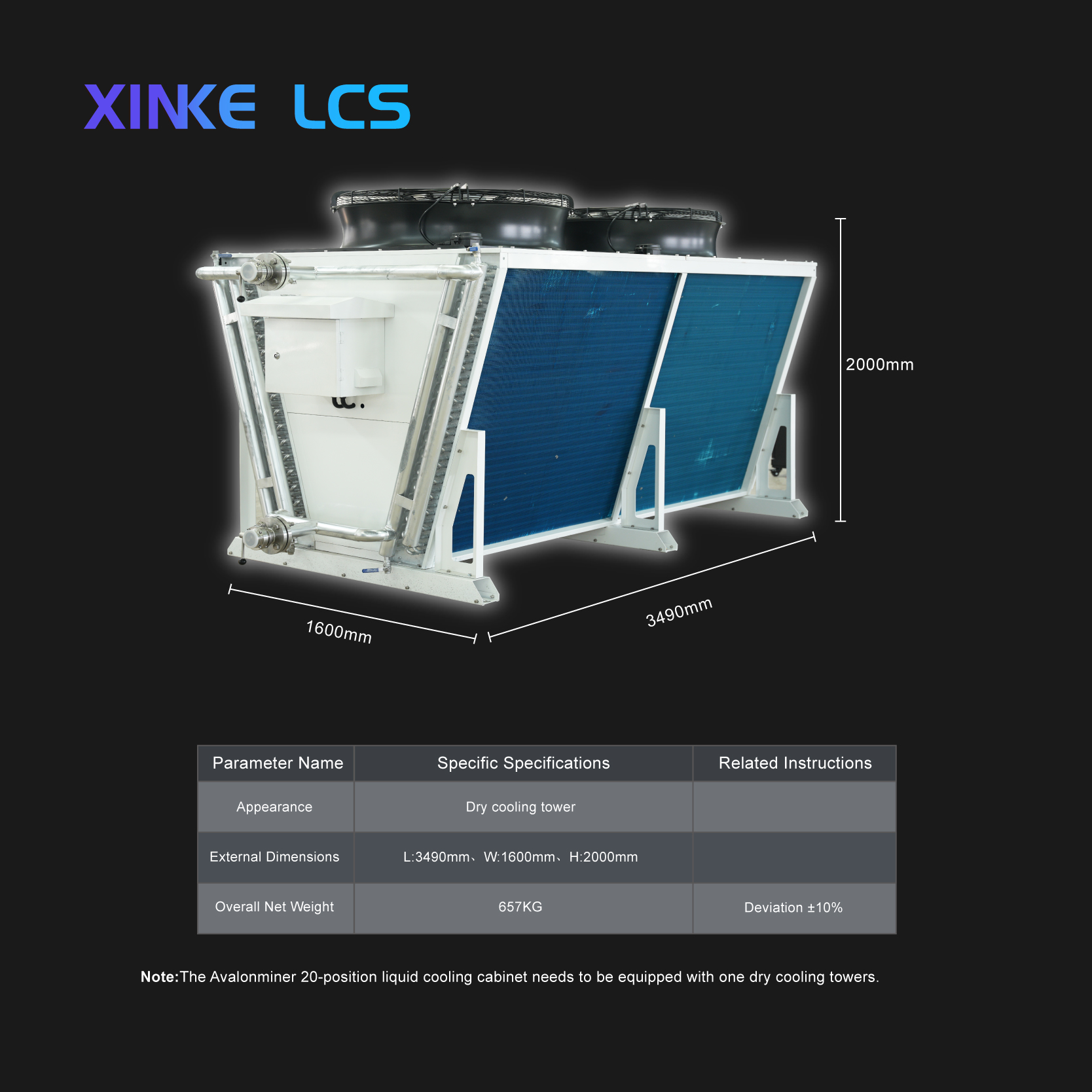

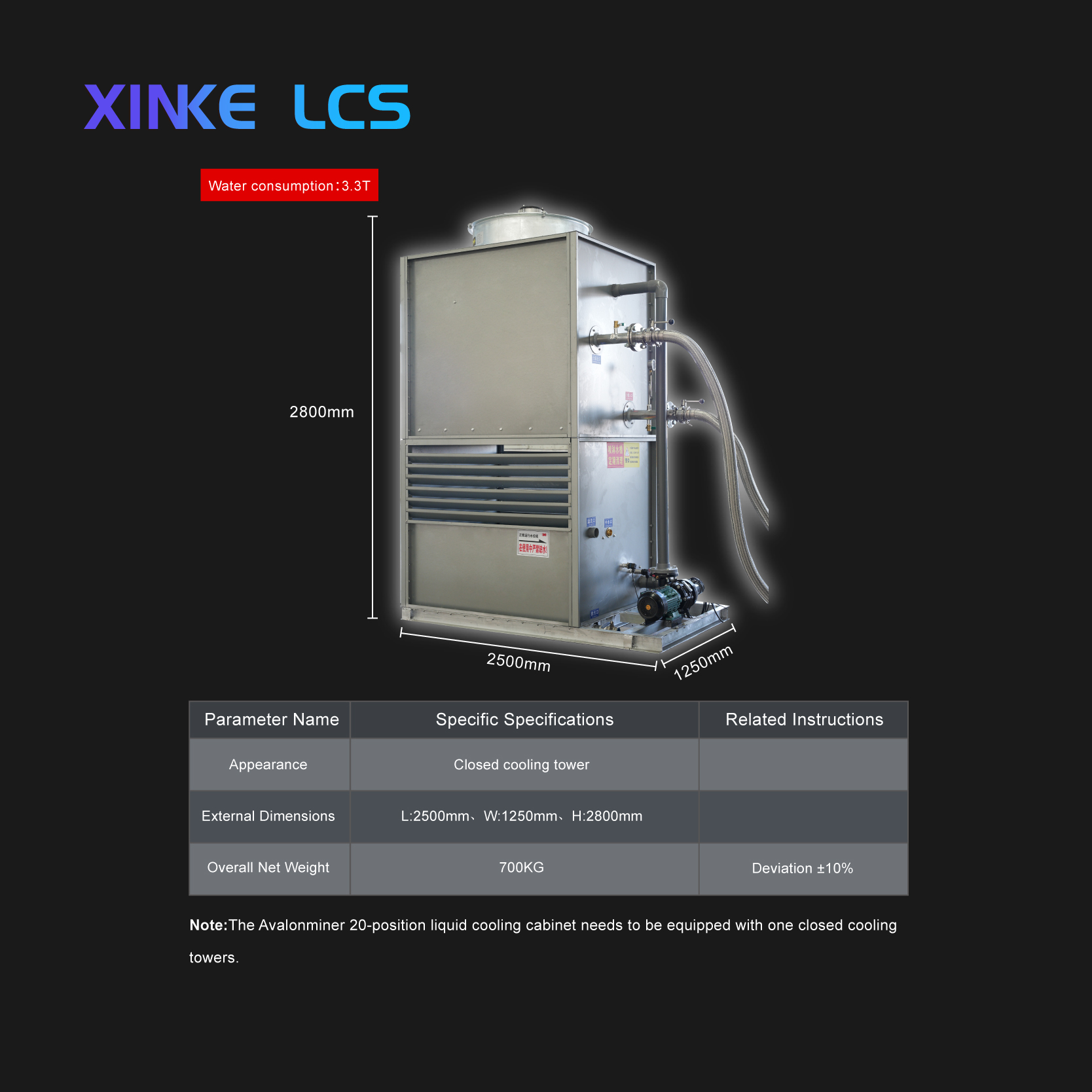

The Avalon 20-Bay Liquid Cooling Cabinet connects 2U water-cooled servers into a cold plate liquid cooling loop: server heat is transferred to the coolant via cold plates, 304 stainless steel seamless piping delivers the coolant to the modular CDU, one CDU drives multiple cabinets, and outdoor heat rejection terminals dissipate the heat to the environment; water-electricity isolation ensures electrical safety and the smart management system monitors temperature, pressure and flow in real time. The modular CDU architecture significantly reduces cooling investment, with cabinets and CDUs combining flexibly for every scenario from single cabinets to scaled deployment.
Applications
- Indoor deployment in Avalon-series mining farm computer rooms
- Liquid cooling retrofit of Avalon 2U water-cooled servers
- Low-cost liquid cooling adoption for small-to-medium mining farms
- Expansion with modular cabinet-CDU combination
- Standardized mining facility construction
Services & Warranty
- 2-year warranty with 7×24 service response
- 365-day free on-site service in China, covering the full project lifecycle
- Fully customizable: form factor, features, appearance and piping layout
- Standard products delivered in 7-15 days; large custom projects in 30-45 days
- Products delivered to 30+ countries and regions worldwide
