Triple-Integration All-in-One — One Cabinet = One Complete System · 150kW+ Total Power · Plug-and-Play
Product Overview

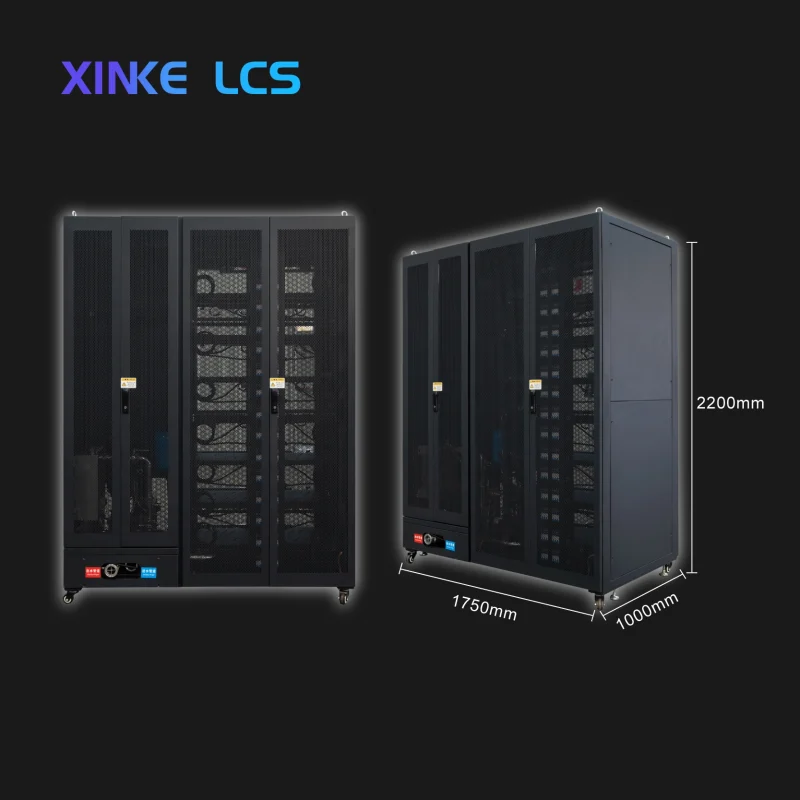

The Antminer 28-Bay Integrated Liquid Cooling Cabinet is Xinke Intelligent’s all-in-one liquid cooling product for Antminer miners, integrating the pump station, control cabinet and 28 bays into a single cabinet — one cabinet is a complete liquid cooling system. Pre-assembled and pre-commissioned at the factory, it runs as soon as water and power are connected on site, with no external pump room, distribution cabinet or field piping work — true “all-in-one delivery, plug-and-play.”
With total cabinet power up to 150-155kW for high-density, high-power deployment of mainstream Antminer models, it uses Bitmain-certified components (Linko aviation plugs, Chint electrical) with 304 stainless steel seamless piping and a water-electricity isolation design for full safety and stability; optional XINKE SMART supports 24/7 unattended operation. Its integrated form makes deployment, expansion and relocation simpler — the ideal choice for rapid commissioning and standardized facility construction.
Key Features
01 Triple-Integration All-in-One, One Cabinet = One Complete System: Pump station, control cabinet and 28 bays integrated into one cabinet; one cabinet is a complete liquid cooling system with no external pump room or distribution cabinet and no field piping work — all-in-one delivery, plug-and-play.
02 28-Bay High-Density Capacity, 150kW+ Total Cabinet Power: 28 bays with total cabinet power up to 150-155kW, compatible with mainstream Antminer models, delivering large-power, high-density liquid cooling in a single cabinet and significantly cutting per-unit computing construction cost.
03 Bitmain-Certified Components, OEM Quality Assurance: Uses Bitmain-certified components: Linko aviation plugs and Chint electrical, with interface compatibility and component quality backed by the OEM, remaining stable and reliable under sustained full-load operation.
04 Water-Electricity Isolation Design, Safe Operation: Water and electrical circuits are physically isolated to eliminate cross-contamination safety hazards, protecting miners and operators through high-intensity, long-duration operation.
05 304 Stainless Steel Seamless Piping, Clean & Contaminant-Free: Core piping in 304 stainless steel seamless pipe keeps the system clean, corrosion-resistant and contaminant-free, with no scaling or leakage over time.
06 Smart Management, 24/7 Unattended Operation: Optional XINKE SMART provides remote on/off, leak warning, energy analysis and remote O&M for fully unattended operation around the clock.
07 Fast Delivery, Flexible Expansion: Standard products delivered in 7-15 days; side-by-side combination supported with the 12/20/24/28/36-bay series for smooth scaling.
08 Precision Manufacturing, Full-Lifecycle Service: ISO9001 quality system with four-stage inspection and ±0.1mm precision; 2-year warranty with 7×24 response and 365-day free on-site service in China.
Technical Specifications
| Parameter | Specification |
| Product Positioning | Indoor all-in-one integrated cabinet (pump + control + bays) |
| Bay Capacity | 28 bays (compatible with mainstream Antminer models) |
| Total Cabinet Power | 150-155kW (configured by miner model) |
| Piping Material | 304 stainless steel seamless piping (clean, corrosion-resistant) |
| Key Components | Bitmain-certified: Linko aviation plugs, Chint electrical |
| Safety Design | Water-electricity isolation, physically separated circuits |
| Deployment Form | Triple integration; one cabinet = one complete system; plug-and-play |
| Smart Management | Optional XINKE SMART (24/7 unattended) |
| Safety Protection | Optional leak detection and alarm |
| Expansion | Side-by-side combination; 12/20/24/28/36-bay series available |
| Delivery Cycle | 7-15 days for standard products |
| Warranty | 2 years, 7×24 service response |
Note: Typical configuration parameters; the final specification is subject to the customized project solution.
Working Principle & System Positioning

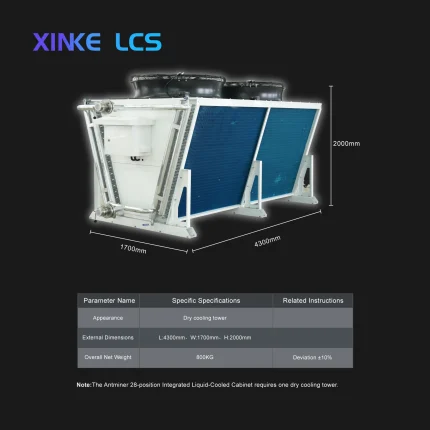

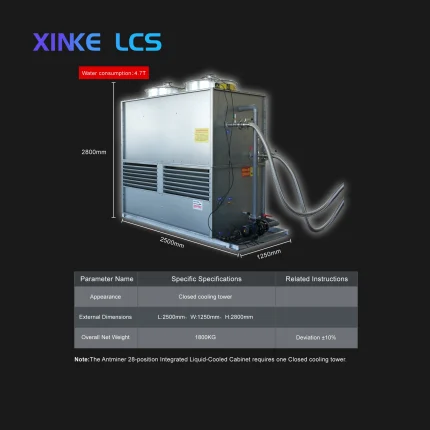

The Antminer 28-Bay Integrated Cabinet integrates the pump station, control cabinet and bays in one enclosure to form a complete cold plate liquid cooling loop: miner heat is transferred to the coolant via cold plates, 304 stainless steel seamless piping delivers the coolant to the in-cabinet pump station, and outdoor heat rejection terminals dissipate it to the environment; water-electricity isolation ensures electrical safety and the smart management system monitors temperature, pressure and flow in real time. One cabinet forms a complete system, and side-by-side deployment expands quickly — the flagship choice for integrated, standardized mining facility construction.
Applications
- Integrated indoor deployment in blockchain mining farm computer rooms
- Rapid commissioning and standardized mining facility construction
- Ultra-high-density liquid cooling deployment of Antminer miners
- Mining farm expansion, relocation and side-by-side combination
- One-step liquid cooling for small-to-medium mining farms
Services & Warranty
- 2-year warranty with 7×24 service response
- 365-day free on-site service in China, covering the full project lifecycle
- Fully customizable: form factor, features, appearance and piping layout
- Standard products delivered in 7-15 days; large custom projects in 30-45 days
- Products delivered to 30+ countries and regions worldwide
