High-Capacity Antminer Cabinet — More Bays, Fewer Cabinets · OEM Components · High Density
Product Overview

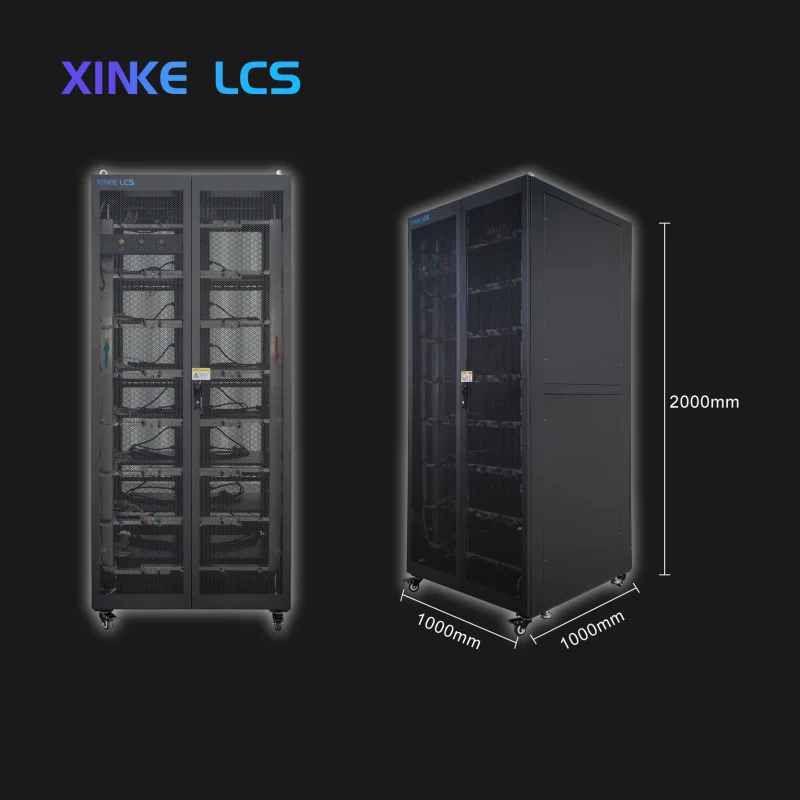

The Antminer 24-Bay Liquid Cooling Cabinet is Xinke Intelligent’s indoor liquid cooling cabinet purpose-built for Antminer miners, with 24-bay high-density capacity compatible with mainstream Antminer models. Using Bitmain-certified components (Linko aviation plugs, Chint electrical) with 304 stainless steel seamless piping and a water-electricity isolation design, it ensures safe and stable operation from connections to piping and from electrical to hydraulic systems.
As the high-capacity model of the Antminer cabinet family (12/20/24/28/36 bays), the 24-bay version delivers higher per-cabinet density, enabling larger deployments with fewer cabinets.
Key Features
01 Custom-Engineered for Antminer, 24-Bay High-Density Capacity: Designed specifically for Antminer miners with 24 bays, compatible with mainstream Antminer models and flexibly adapted by model for high-density indoor liquid cooling deployment.
02 Bitmain-Certified Components, OEM Quality Assurance: Uses Bitmain-certified components: Linko aviation plugs and Chint electrical, with interface compatibility and component quality backed by the OEM, remaining stable and reliable under sustained full-load operation.
03 Water-Electricity Isolation Design, Safe Operation: Water and electrical circuits are physically isolated to eliminate cross-contamination safety hazards, protecting miners and operators through high-intensity, long-duration operation.
04 304 Stainless Steel Seamless Piping, Clean & Contaminant-Free: Core piping in 304 stainless steel seamless pipe keeps the system clean, corrosion-resistant and contaminant-free, safeguarding coolant quality and heat exchange efficiency with no scaling or leakage over time.

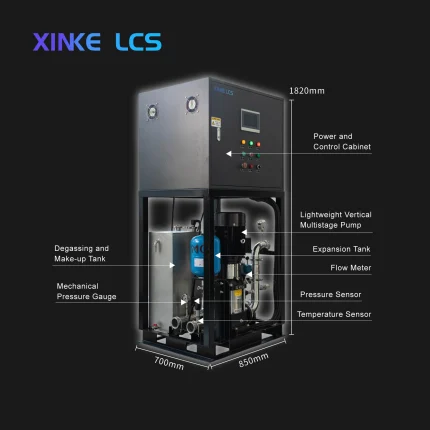

05 Integrated Pump Station & Control Cabinet, Minimal Footprint: The pump station and control cabinet are highly integrated with the bays, eliminating separate pump rooms and distribution cabinets, with a minimal footprint for rapid deployment in various indoor sites.
06 Smart Management, 24/7 Unattended Operation: Optional XINKE SMART provides remote on/off, leak warning, energy analysis and remote O&M for fully unattended operation around the clock.
07 Fast Delivery, Flexible Expansion: Standard products delivered in 7-15 days; side-by-side combination supported with the 12/20/24/28/36-bay series for smooth scaling.
08 Precision Manufacturing, Full-Lifecycle Service: ISO9001 quality system with four-stage inspection and ±0.1mm precision; 2-year warranty with 7×24 response and 365-day free on-site service in China.
Technical Specifications
| Parameter | Specification |
| Product Positioning | Indoor liquid cooling cabinet (for Antminer miners) |
| Bay Capacity | 24 bays (compatible with mainstream Antminer models) |
| Piping Material | 304 stainless steel seamless piping (clean, corrosion-resistant) |
| Key Components | Bitmain-certified: Linko aviation plugs, Chint electrical |

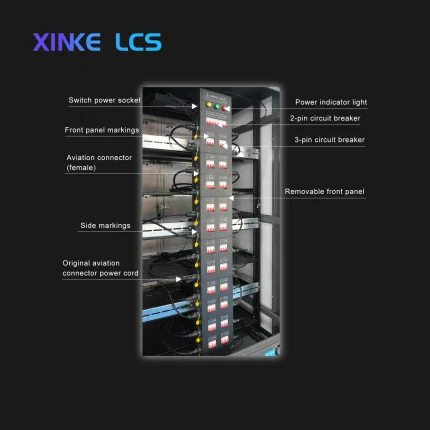

| Safety Design | Water-electricity isolation, physically separated circuits |
| Deployment Form | Indoor, integrated pump station/control cabinet, minimal footprint |
| Smart Management | Optional XINKE SMART (unattended) |
| Safety Protection | Optional leak detection and alarm |
| Expansion | Side-by-side combination; 12/20/24/28/36-bay series available |
| Delivery Cycle | 7-15 days for standard products |
| Application | Mining farm indoor deployment |
| Warranty | 2 years, 7×24 service response |
Note: Typical configuration parameters; the final specification is subject to the customized project solution.
Working Principle & System Positioning

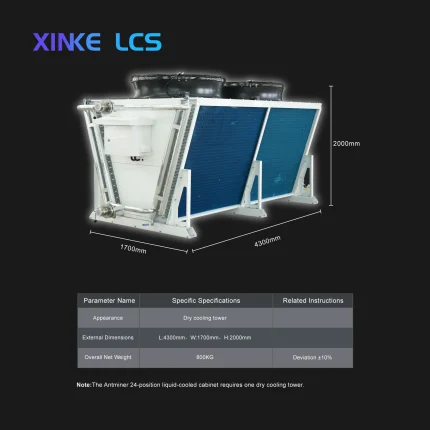

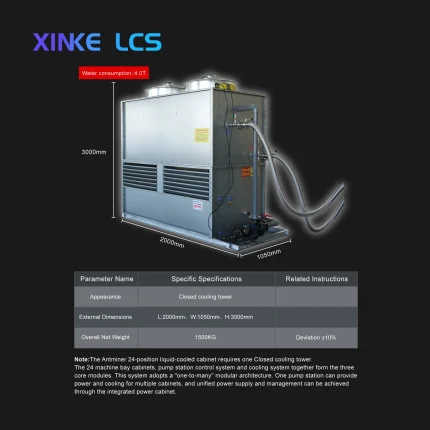

The Antminer 24-Bay Liquid Cooling Cabinet connects miners into a cold plate liquid cooling loop: miner heat is transferred to the coolant via cold plates, 304 stainless steel seamless piping delivers the coolant to the integrated pump station, and outdoor heat rejection terminals such as dry coolers dissipate it to the environment; the water-electricity isolation design ensures electrical safety and the smart management system monitors temperature, pressure and flow in real time with automatic alarms. Together with the CDU and outdoor heat rejection terminals, it forms a complete liquid cooling loop for side-by-side indoor deployment.
Applications
- Indoor deployment in blockchain mining farm computer rooms
- Small-to-medium computing and miner hosting
- High-density liquid cooling deployment of Antminer miners
- Mining farm expansion and side-by-side combination
- Standardized mining facility construction
Services & Warranty
- 2-year warranty with 7×24 service response
- 365-day free on-site service in China, covering the full project lifecycle
- Fully customizable: form factor, features, appearance and piping layout
- Standard products delivered in 7-15 days; large custom projects in 30-45 days
- Products delivered to 30+ countries and regions worldwide
