24-position

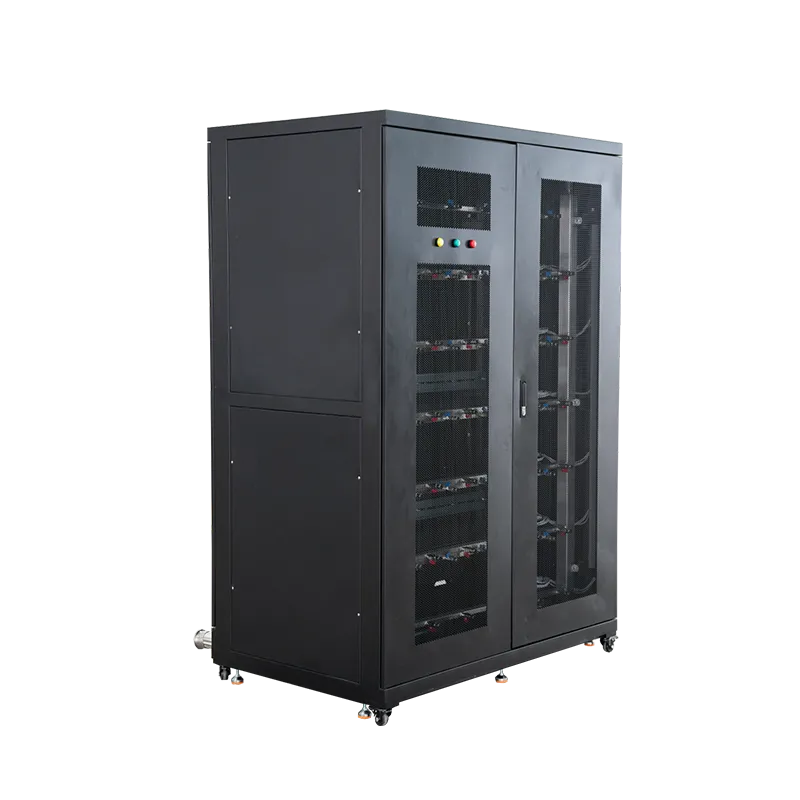

This equipment is a 24-position exclusive cabinet designed for Ant water-cooled servers. It is a customized cabinet that can be diversified and assembled by setting the cabinet, pump station control system and cooling system as modules. Integrating the pump station and the control cabinet into an intelligent CDU module enables a single CDU to support multiple cabinets. At the same time, this cabinet improves the transmission and heat exchange effect of the coolant to the optimal level.
$:
Product Features
1. Modularization - the cabinet, pump station control and total power system and cooling system are three modules of the entire system to achieve diversified combinations.
2. Automation - This cabinet is equipped with a PLC automatic control system, which can be unattended 24 hours a day.
3. Flexibility - the control system of the cabinet is equipped with an automatic control mode and a manual control mode. This mode can change the equipment operating parameters in real time according to customer needs.
4. Networking - This system can be operated remotely. Using the mobile APP or through the Internet backend, customers can receive equipment alarms and monitor the operating status of the equipment in real time. If a fault occurs, the system can be pushed to the mobile phone.
5. Privacy - the cabinet body can be customized with a variety of appearances, such as the appearance of an electric boiler, which can be disguised and hidden.
6. Autonomous - products are independently developed and produced independently to ensure quality.
Technical Specifications
Cabinet external dimensions: length 1000mm, width 1000mm, height 2000mm
Cabinet internal dimensions: length 920mm, width 920mm, height 1997mm.
Overall net weight of the cabinet: 220KG (excluding machine, deviation value ±5KG).
Single Cabinet Configuration—Dry Cooling Tower Specifications
Cooling tower external dimensions: length 2940mm, width 1550mm, height 1880mm
Overall net weight of cooling tower: 665KG (deviation value ±10KG)
Single cabinet configuration - closed cooling tower specifications:
Cooling tower external dimensions: length 2450mm, width 1000mm, height 2530mm
Overall net weight of cooling tower: 680KG (deviation value ±10KG)
The 24-position cabinet can be combined with the pump station control-total power system and cooling system to form three modules of the entire system, realizing a modular combination of one pump station driving multiple cabinets, and providing the total power of the entire system through the equipped power cabinet. As follows:
Schematic diagram of one-to-many combined connection
Technical Parameters
| Standard accessory parameters | System operating basic parameters | |||||
| serial number | numerical value | unit | numerical value | unit | ||
| 1 | Installed capacity | twenty four | indivual | System pipe pressure | 5~6 | bar |
| 2 | Installed load | 132 | KW | System operating temperature range | 50-60 | ℃ |
| 3 | Lightweight vertical multistage pump power | 3 | KW | Single machine coolant circulation requirement | ≥0.5 | m³/h |
| 4 | Rehydration pump power | 0.6 | KW | Total demand for circulating coolant in the system | ≥1.8 | m³ |
| 5 | Dry cooling tower fan total power | 5 | KW | Control and Power Systems | ||
| 6 | Total power of closed cooling tower fan | 1.5 | KW | PDU | 394 | A |
| 7 | Closed cooling tower spray pump power | 0.75 | KW | Automatic reclosing | 400 | A |
| 8 | Option parameters | contactor | 9 | A | ||
| 9 | Electromagnetic heater power | 12 | KW | Intermediate relay | twenty four | V |
| 10 | Plate exchange circulation pump power | 2 | KW | Frequency converter | 380 | V |
Advantages
All fittings in the pipelines are made of 2.0 grade 304 food grade stainless steel pipe fittings. The thickness of the cabinet plates is 1.5-2.0mm thick. After forming, they are sprayed with black plastic and treated with anti-rust processes. The overall cabinet is high-strength, good-looking, and durable.
The electrical accessories are all domestic and foreign first-line brands selected after many experiments and adhering to the principle of selecting the best from the best, truly achieving the goals of low failure, low loss and high efficiency.
