RACKCHILLER RACK MANIFOLD

Application

• RackChiller Rack Manifolds are a configurable solution utilized in liquid cooled applications that require increased uptime and improved power usage effectiveness. Designed with integration and installation in mind, the manifolds utilize plug-and-play style connections, universal mounting features and coexist with other data center accessory equipment.

Features

• Delivers water-based coolant from CDU unit or facility manifolds to cold plate equipment

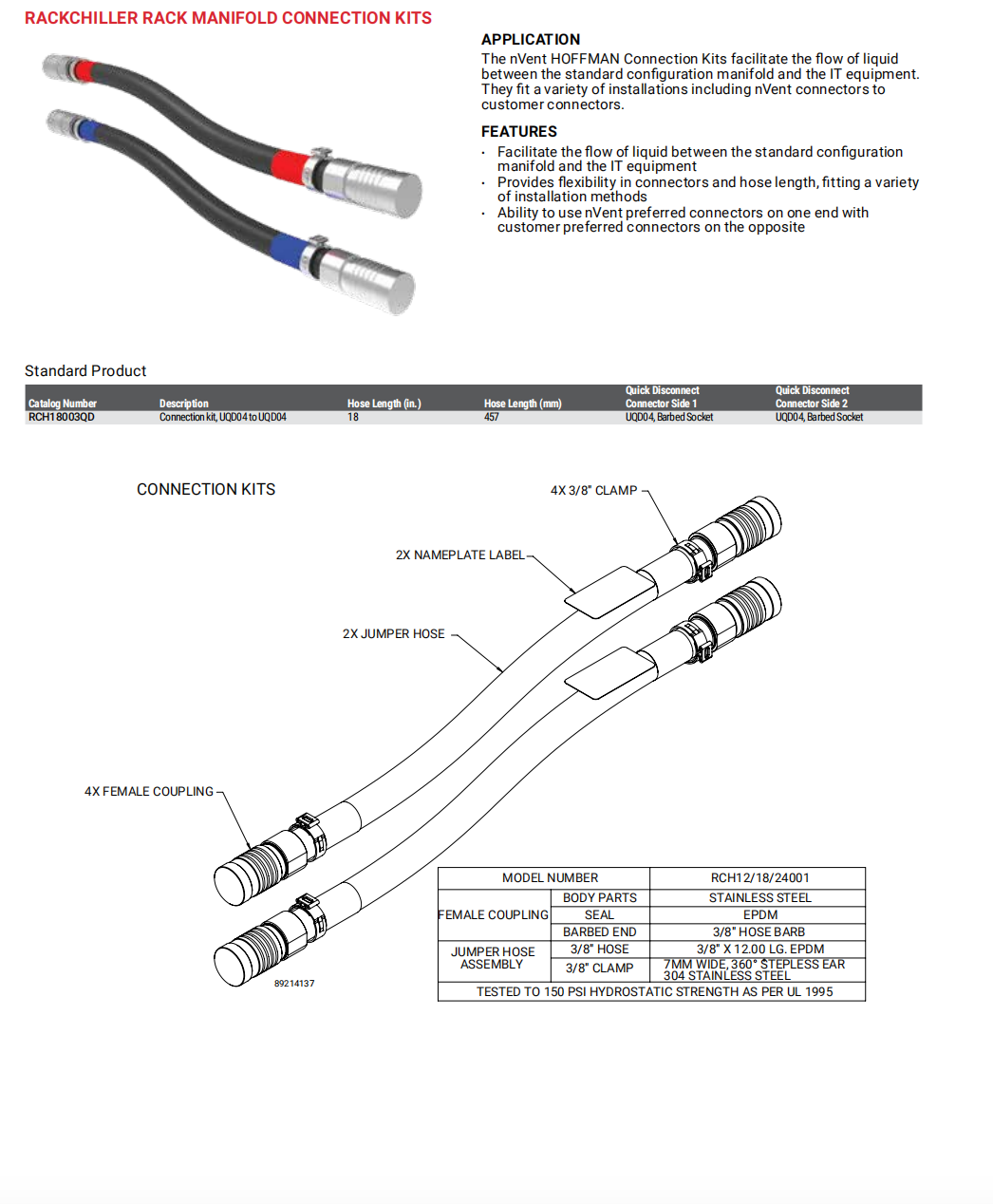

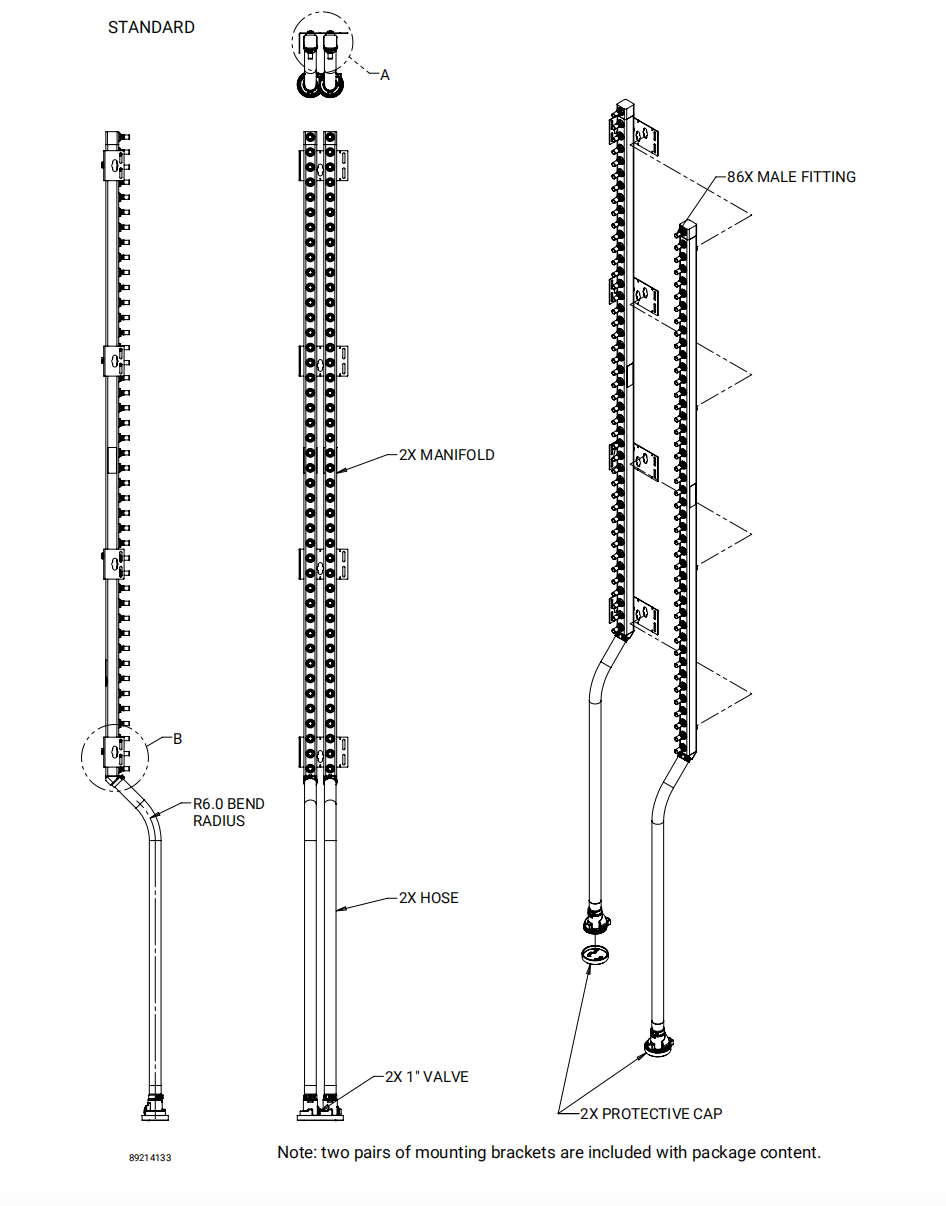

• Standard configuration uses jumper hoses to connect manifold to cold plate equipment (jumper hoses sold separately)

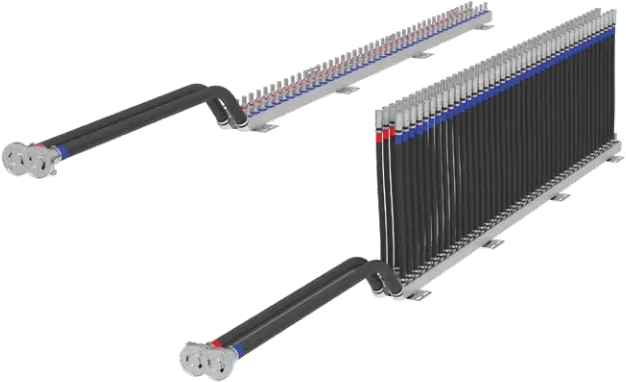

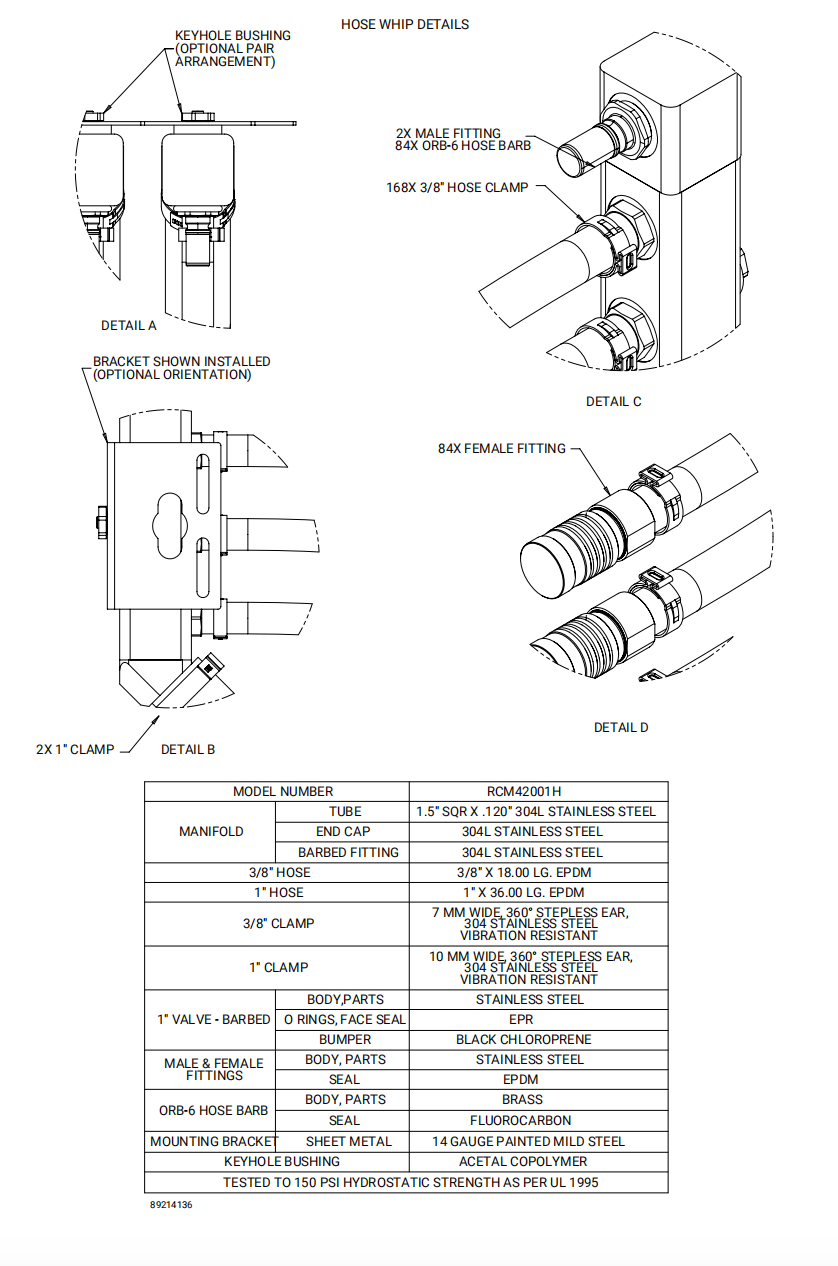

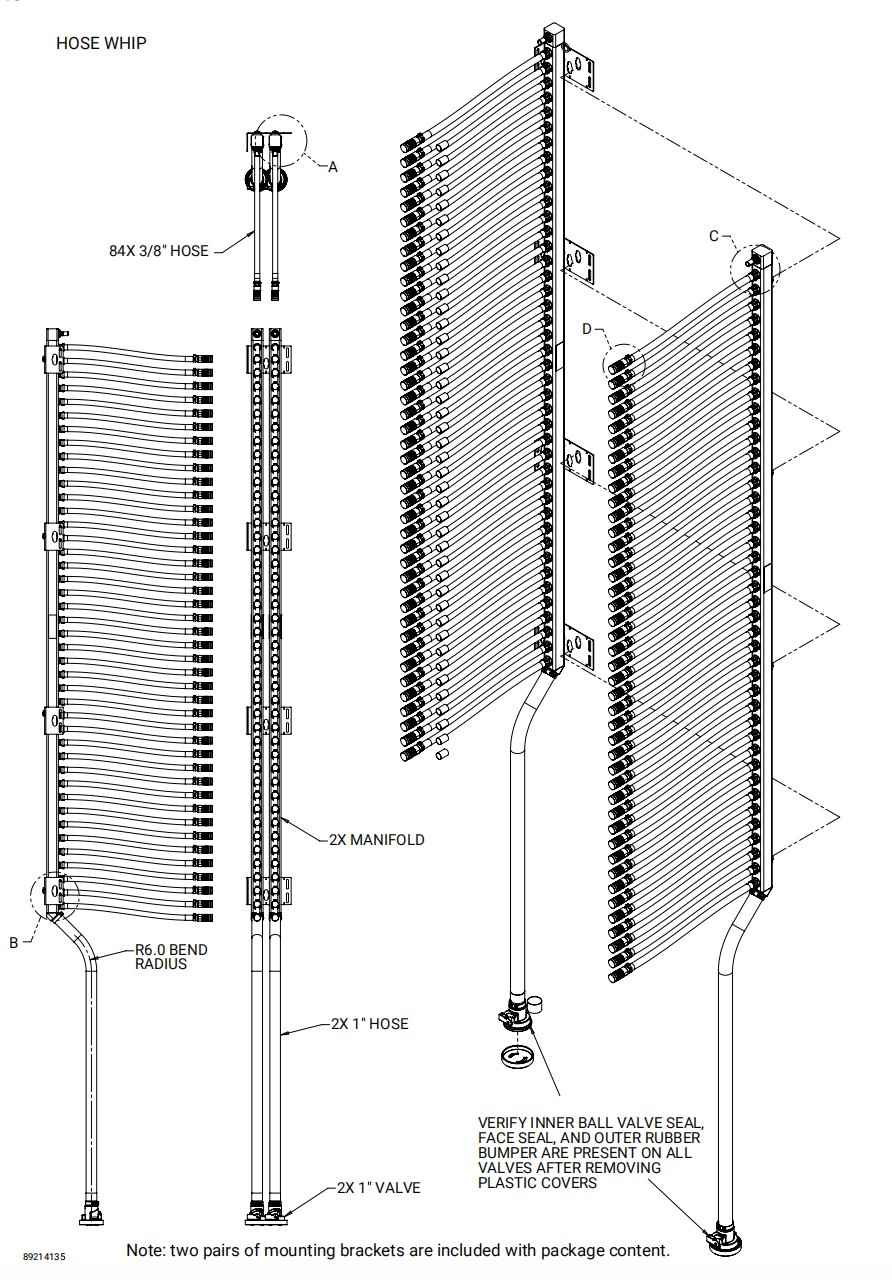

• Hose-whip configuration connects directly to cold plate equipment utilizing hose-whips attached directly to the manifold

• Various dripless, quick disconnect connectors available to match existing cold plate equipment

• Button-style mounting to be used with universal mounting brackets (also used with RackPower PDU products)

• Increases data up-time

• Extends server equipment life span

• Improves data center power usage effectiveness, providing annual return on investment

• Multiple connectivity options to match downstream cooling equipment needs

       Plug-and-play style installation

• Universal mounting features to coexist with other rack accessory equipment (i.e. PDU’s, cable management, airflow management,  etc.)

• Two major configurations designed to service alternate secondary cooling loop products

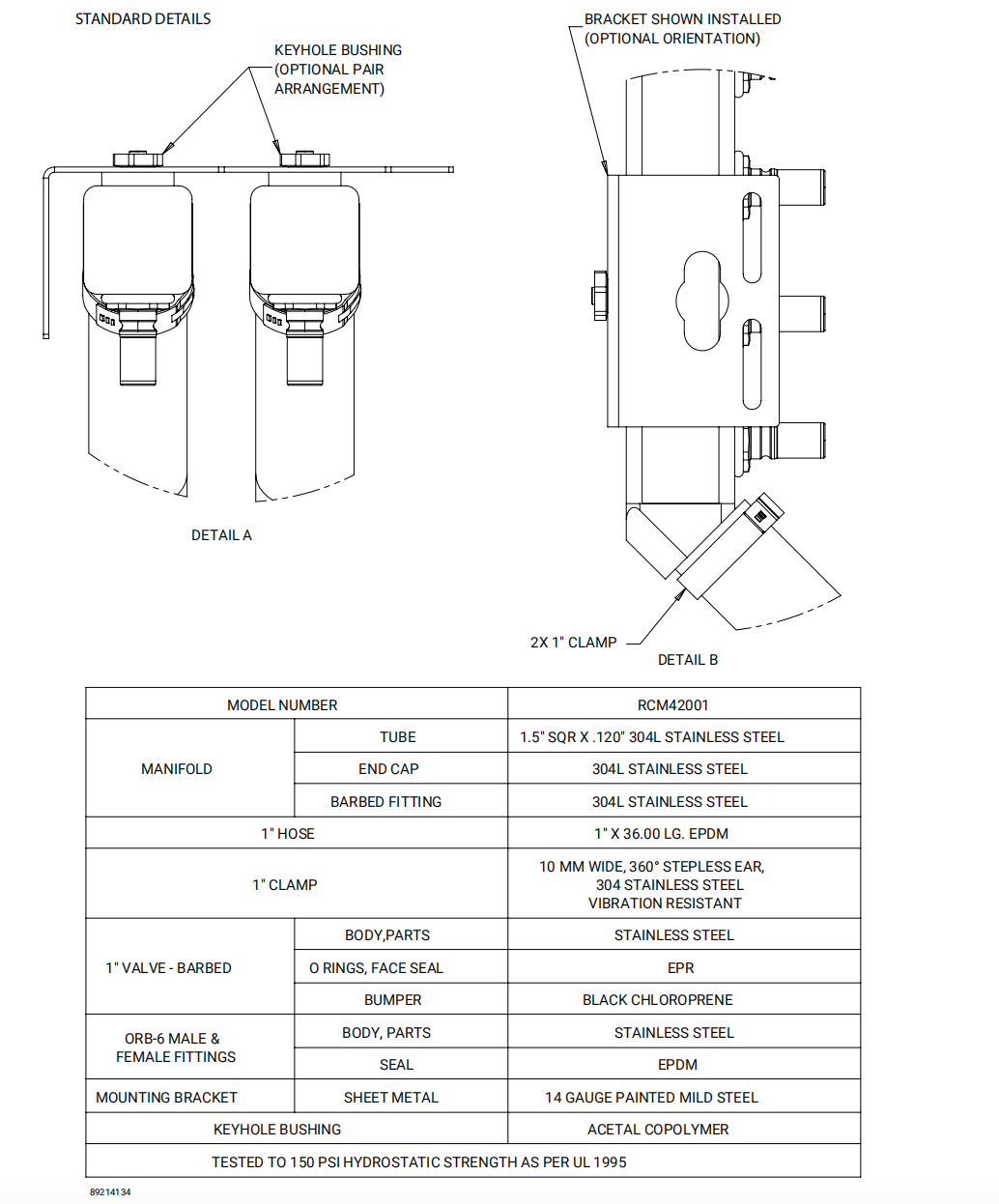

Specifications

• 1.50 x 1.50 (38mm x 38mm) stainless steel tube construction

• Friction-drilled, ORB-6 port threads

• Standard manifolds utilize Parker NSP-06 quick disconnect connectors

• FD-83 supply/return ball valve connector

Components

• Manifold set ships with:

• Two manifolds (1x supply and 1x return)

• Two sets of mounting brackets (total of 4 brackets including mounting hardware

Finish

• Passivated stainless steel




Standard Product
